Pioneer® 24,000 BTU 21.2 SEER2 Floor/Ceiling Mini-Split Inverter++ Energy-Star Air Conditioner Heat Pump System Full Set 230V

SKU: UYB024GMFILCAD-16

Price:
Sale price$1,848.00 Regular price$2,550.00

Shipping calculated at checkout

Financing:
Stock:
In stock

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Overview

Summary

  • Ultra High Efficiency Inverter++ floor/ceiling split heat pump system
  • Cooling capacity: 24,000 BTU/H with 21.2 SEER2 / 12.5 EER2 efficiency
  • Heating capacity: 24,000 BTU/H with 10.3 HSPF2 / 3.66 COP2 efficiency
  • Voltage: 208~230 V, 60 Hertz, 1 Ph
  • Floor/Ceiling Flex Mount Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Customizable length copper line set with flare connections
  • Energy-Star Certified
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $158.00
    • Heating: $453.00
[[SERIES]]

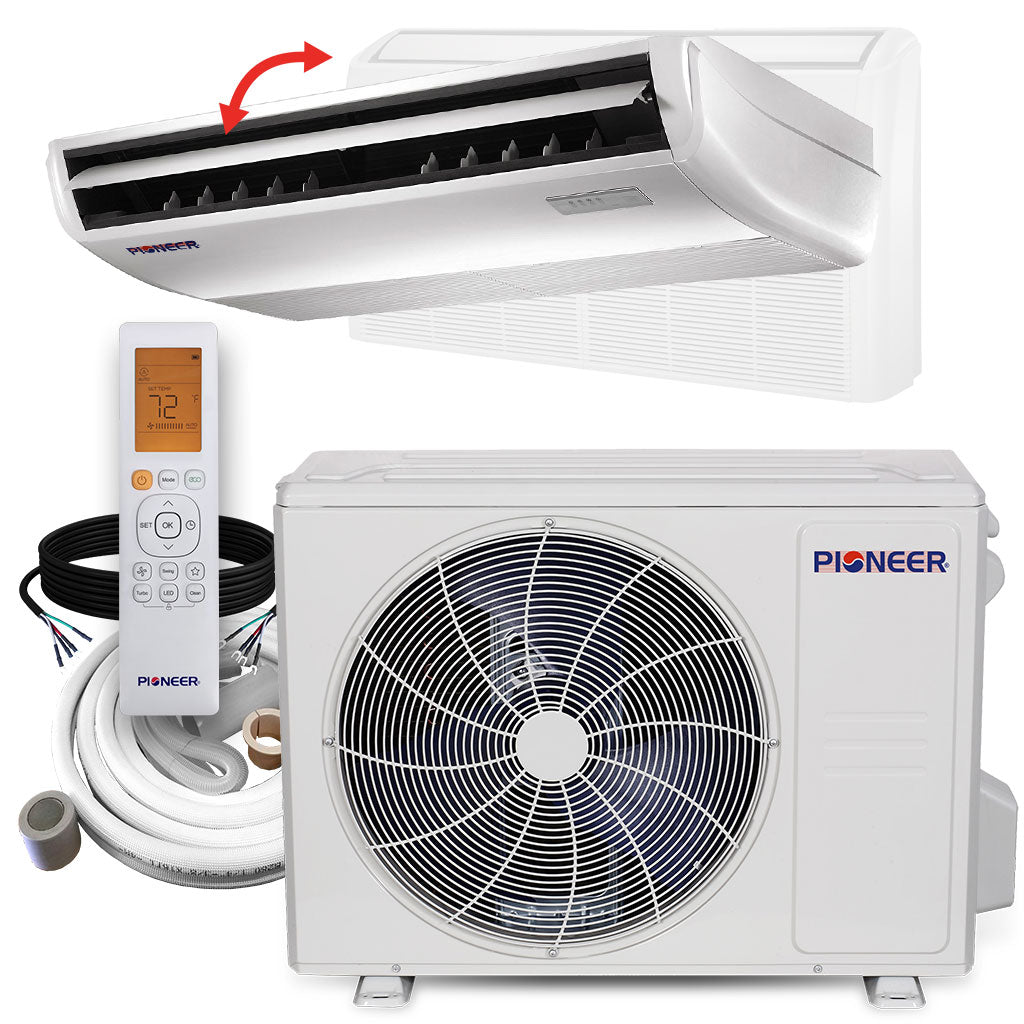

What's Included

  • Indoor Unit
  • Outdoor Unit

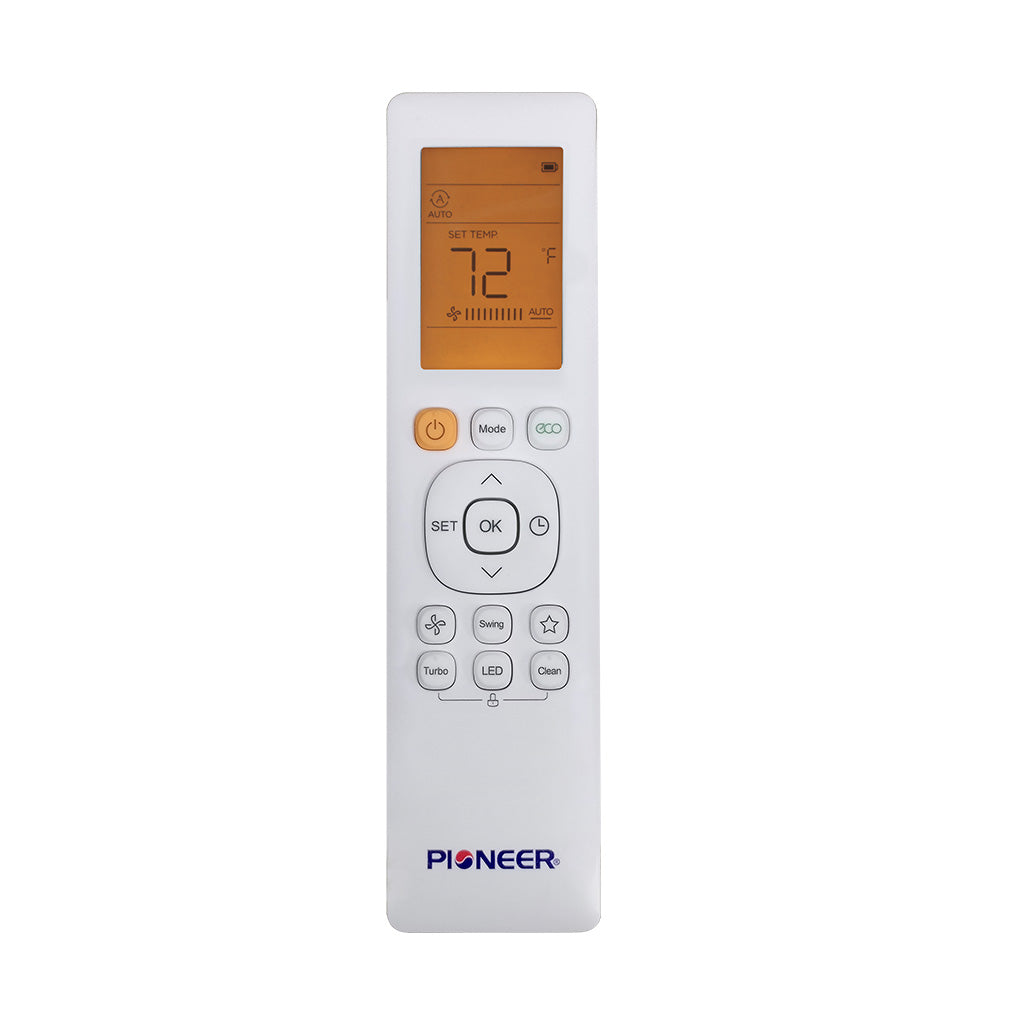

  • Wireless Remote Control
  • Various Installation Kit Options Available
  • Flare Connection Leak Guard Sealer
  • Installation Manual
  • User’s Manual
  • Manufacturer Warranty

Our Guarantee

  • 5 year parts limited warranty
  • 5 year compressor limited warranty

Features

[[FEATURES]]

Technical Information

Certifications

Pioneer Mini Split Certifications

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 24,000 BTU/h
  • Cooling Capacity Range: 7,700~25,500 BTU/h
  • Cooling SEER2: 21.2 BTU/W.h
  • Cooling EER2: 12.5 BTU/W.h
  • Heating Rated Capacity: 24,000 BTU/h
  • Heating Capacity Range: 7,800~31,240 BTU/h
  • Heating HSPF2 (Region IV/V): 10.3 / 7.8 BTU/W.h
  • Heating C.O.P.2 (47°F/5°F): 3.66 / 2.2 W/W
  • Refrigerant Type: R410a
  • Suitable Area: 650~900 Sq.F

Indoor Unit Data

  • Part Number: UB024GMFILCFHD
  • Air Flow (Hi/Med/Lo): 759 / 708 / 598 CFM
  • Sound Level (Hi/Med/Lo): 51.0 / 47.0 / 42.0 dB(A)
  • Net Dimensions (WDH): 42.0 x 26.5 x 9.3 Inches
  • Carton Dimensions (WDH): 45.0 x 29.8 x 12.4 Inches
  • Net / Gross Weight: 60.6 / 72.0 Lbs

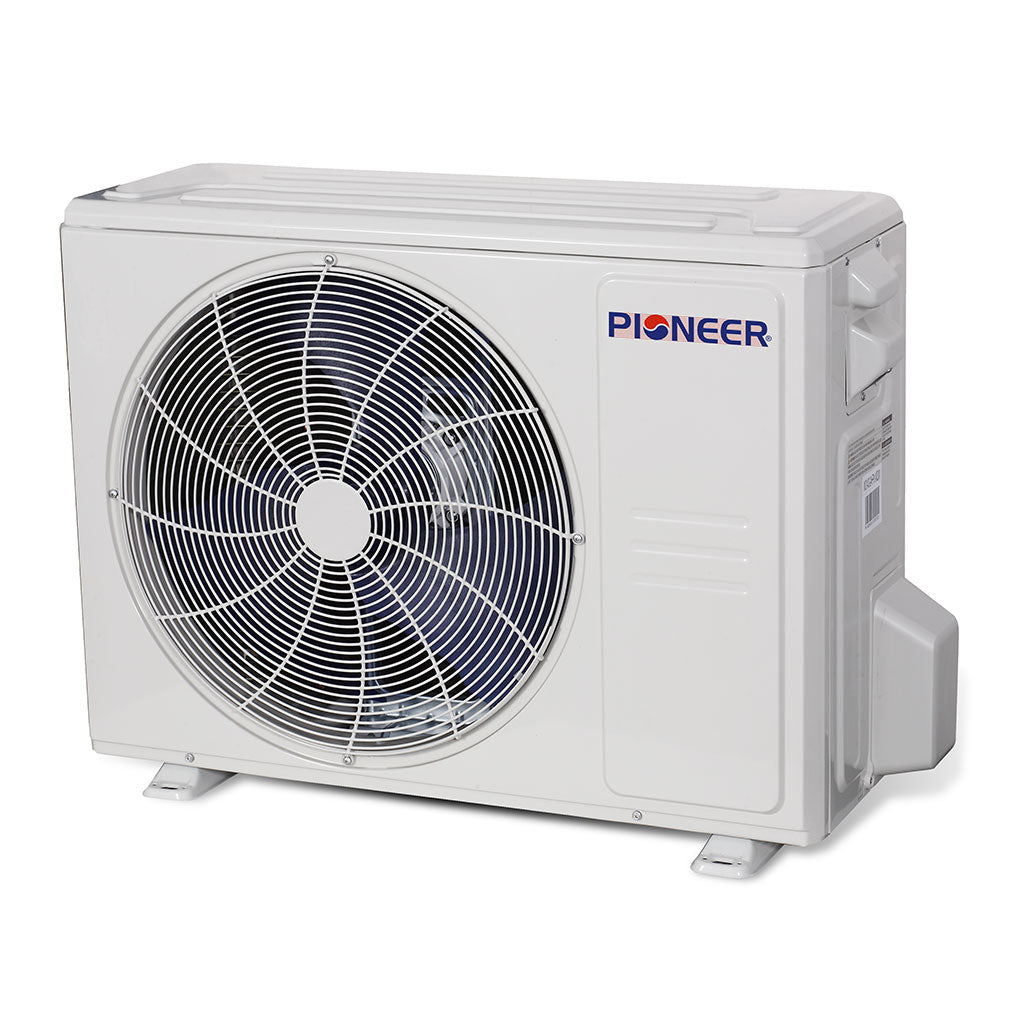

Outdoor Unit Data

  • Part Number: YN024GMFI22RPE
  • Breaker Needed: 25A (double-pole)
  • Sound Level: 61.0 dB(A)
  • Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
  • Carton Dimensions (WDH): 42.8 x 19.6 x 34.8 Inches
  • Net / Gross Weight: 124.8 / 134.9 Lbs
