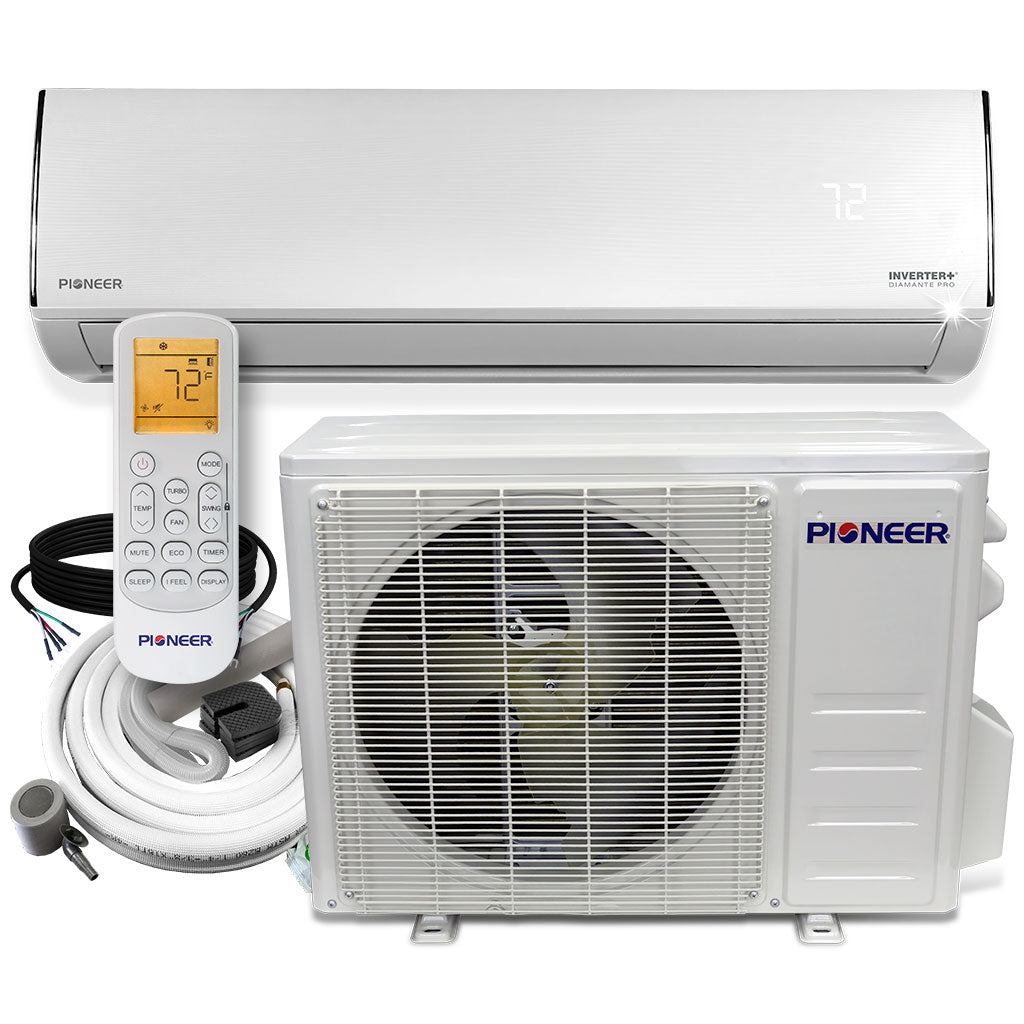

Pioneer® Diamante Series 18,000 BTU 19 SEER Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 230V with 16 Ft. Kit

SKU: WYT018GLFI19RL

Price:
Sale price$838.00 Regular price$1,199.00

Shipping calculated at checkout

Financing:
Stock:
In stock

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

Summary

  • High Efficiency Diamante Ductless Mini Split Heat Pump System
  • Cooling capacity: 18,000 BTU/H with 19 SEER/10 EER efficiency
  • Heating capacity: 19,000 BTU/H with 10 HSPF/3.0 COP efficiency
  • Voltage: 208~230V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $125.00
    • Heating: $402.00

Features

  • Dual Swing
  • Dual Drainage
  • Low Noise
  • High Efficiency

Notes: See comparison table with WYS series

What's Included

  • Indoor Unit
  • Outdoor Unit

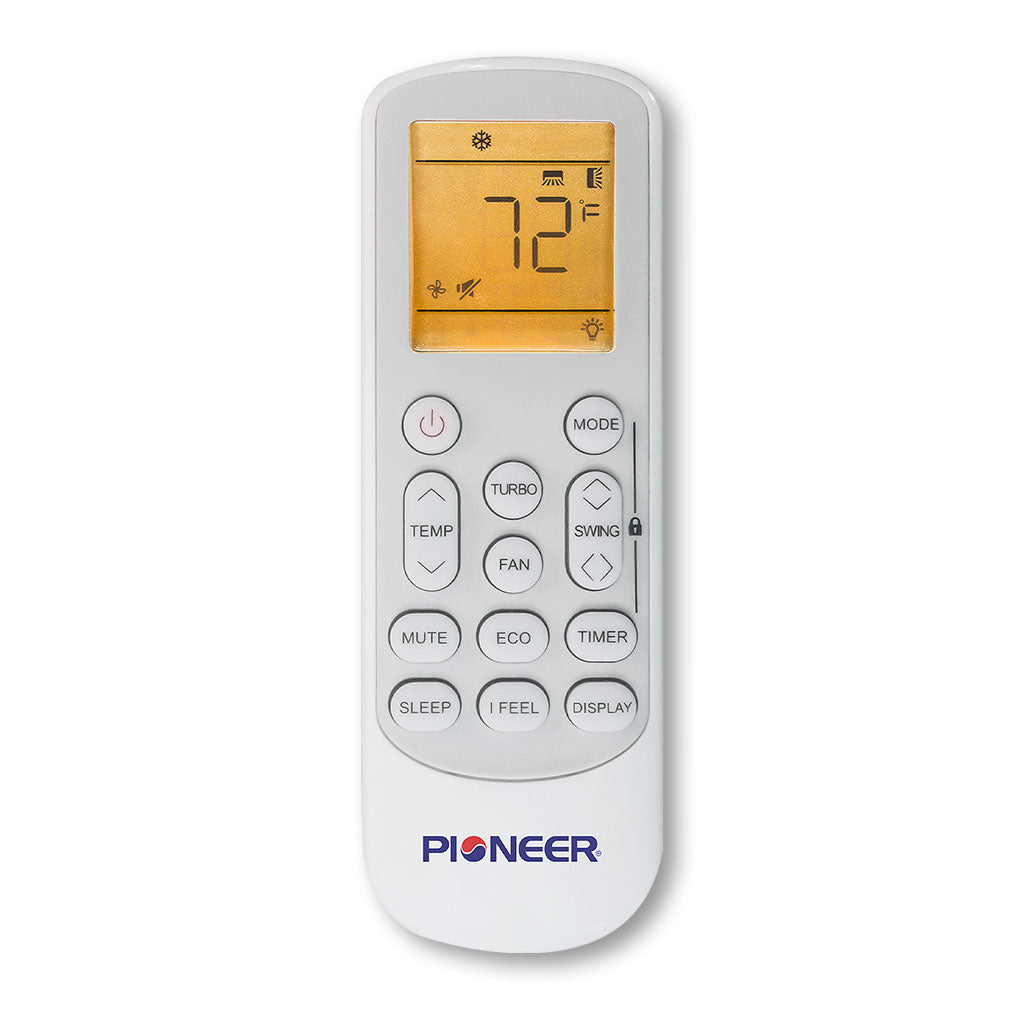

  • Wireless Remote Control (with wall holder and batteries)

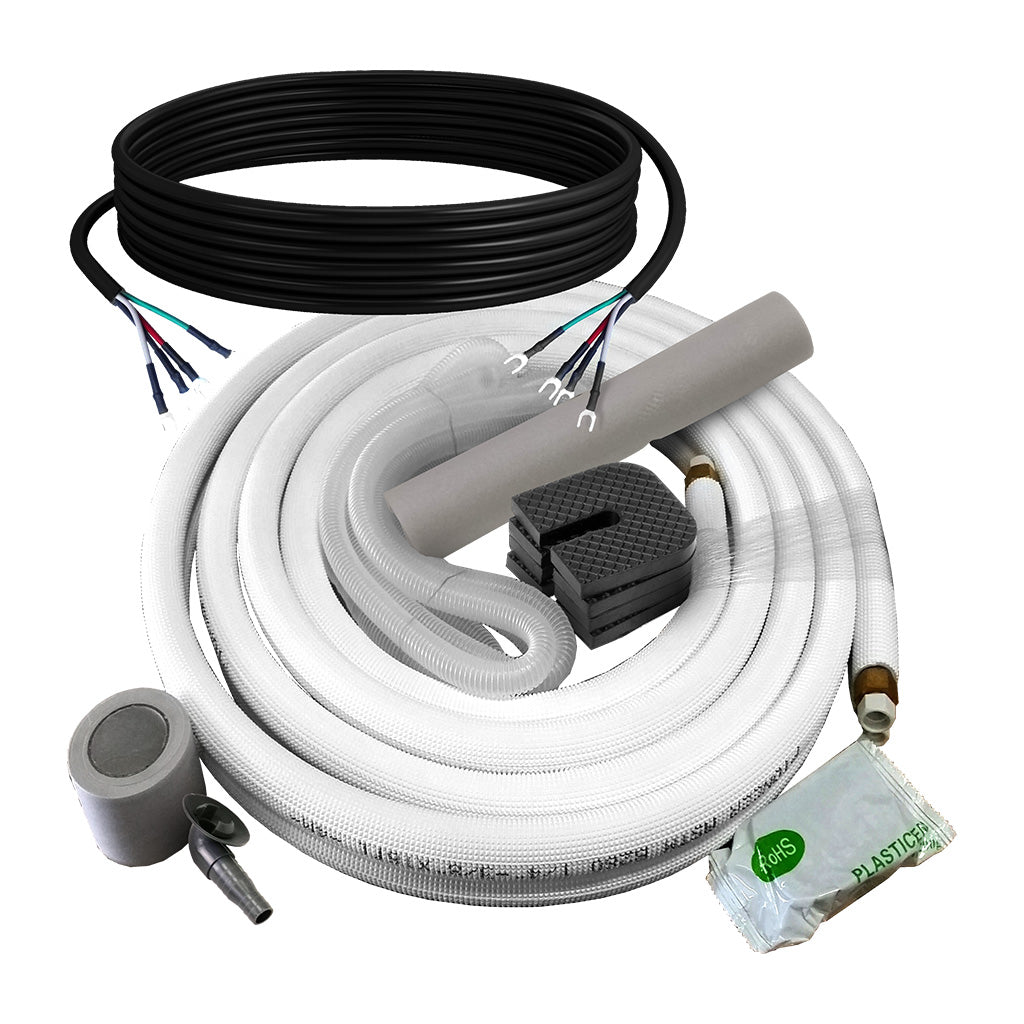

  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years Warranty for Compressor

Performance Data

  • Power Supply: 208~230V, 60Hz, 1Ph
  • Cooling Rated Capacity: 18,000 BTU/h
  • Cooling Capacity Range: 4,075~24,100 BTU/h
  • Cooling SEER: 19 BTU/w
  • Heating Rated Capacity: 19,000 BTU/h
  • Heating Capacity Range: 7,560~24,100 BTU/h
  • Heating HSPF4: 10 BTU/w
  • Refrigerant Type: R410A/44
  • Suitable Area: 350~650 Sq.F

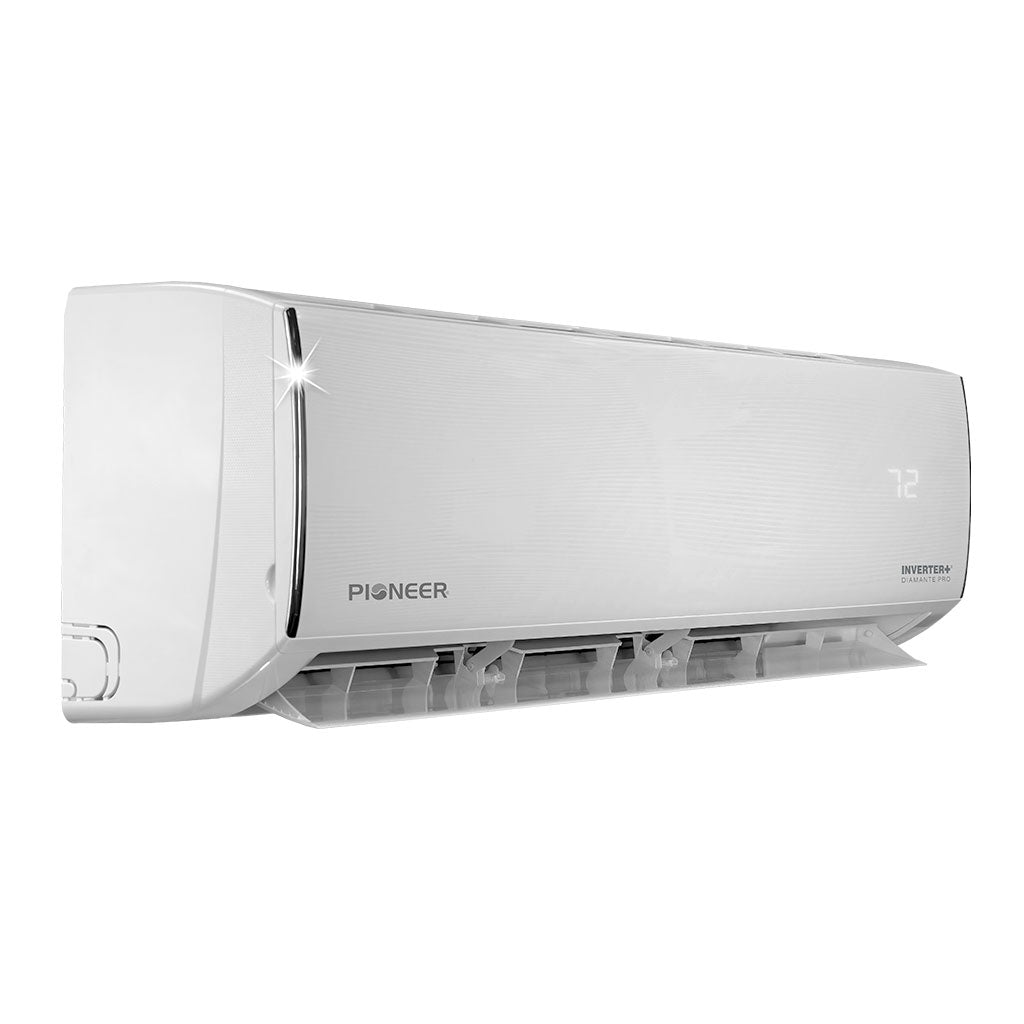

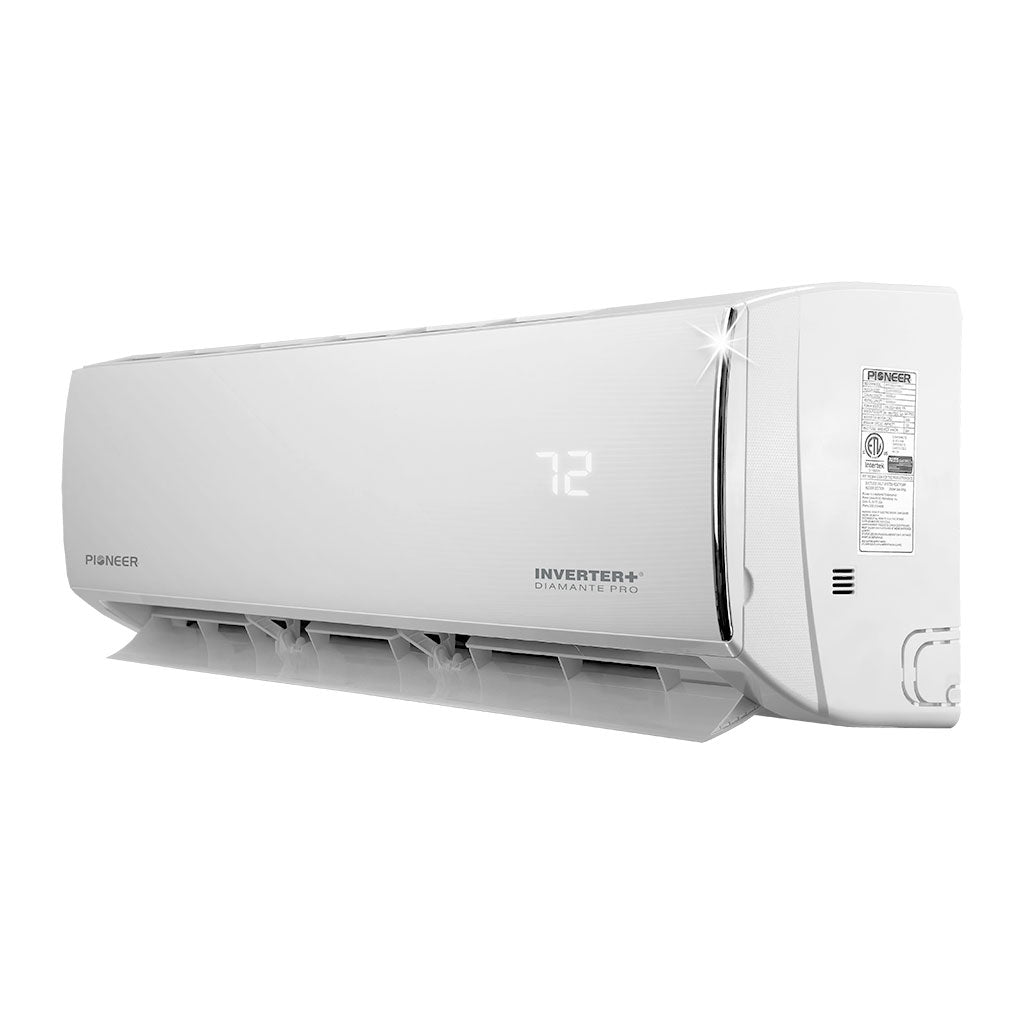

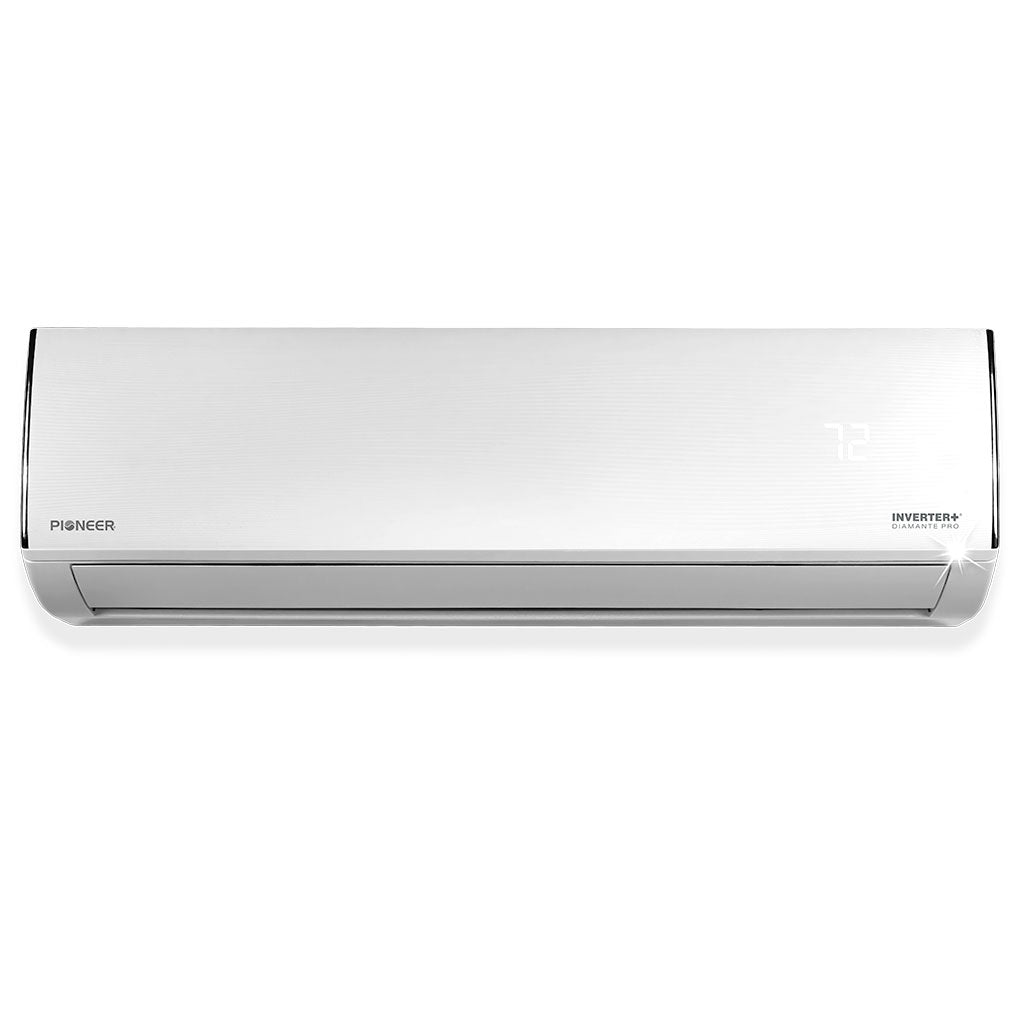

Indoor Unit Data

  • Part Number: WT018GLFI19HLD
  • Air Flow (Hi/Med/Lo): 606 / 465 / 429 CFM
  • Sound Level (Hi/Med/Lo): 45 / 40 / 35 dB(A)
  • Net Dimensions (WDH): 39-3/4  x 8-5/8 x 12-3/8 Inches
  • Carton Dimensions (WDH): 43-1/8 x 11-7/8 x 15-3/8 Inches
  • Net / Gross Weight: 28.7 / 35.3 lbs

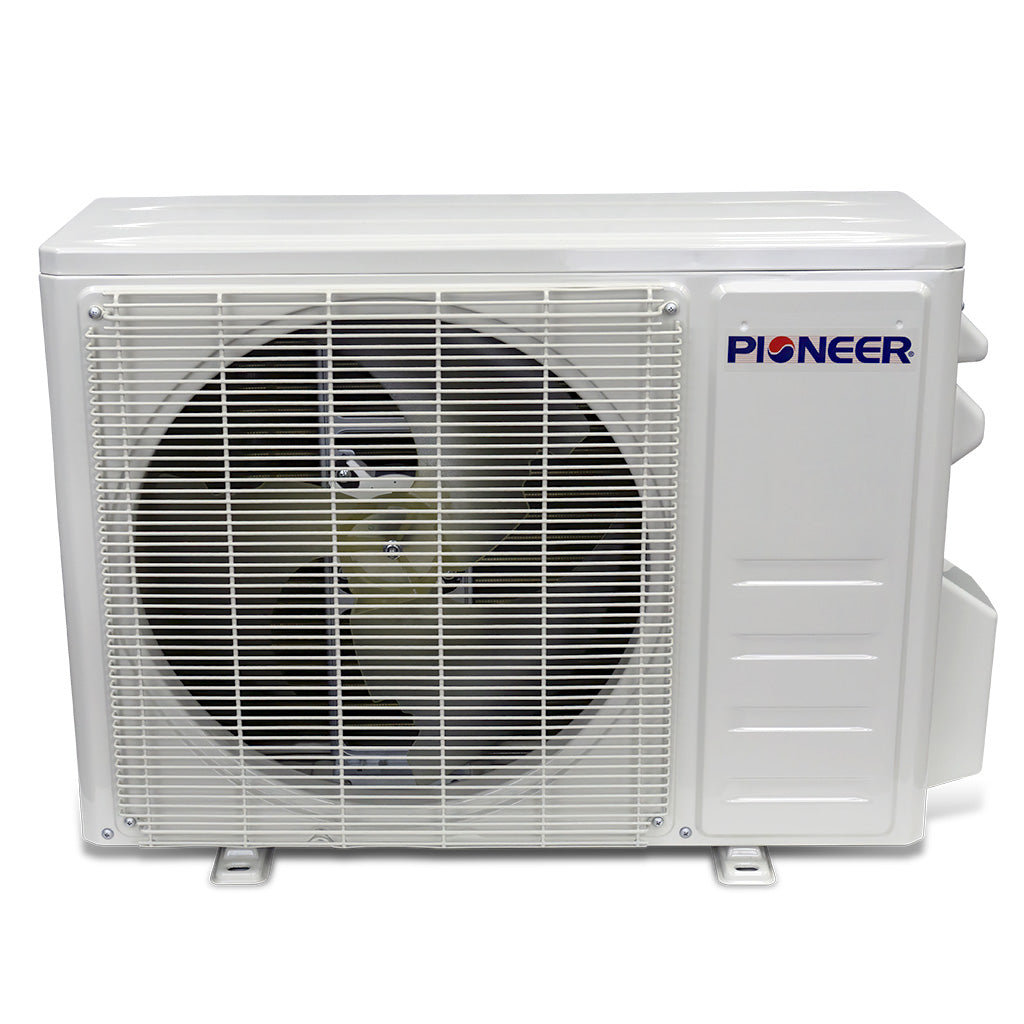

Outdoor Unit Data

  • Part Number: YN018GLFI19RPD
  • Breaker Needed: 20A (double-pole)
  • Sound Level: 52 dB(A)
  • Net Dimensions (WDH): 30-3/4 x 13-3/4 x 23-7/8 Inches
  • Carton Dimensions (WDH): 35-3/8 x 15-7/8 x 25-3/4 Inches
  • Net / Gross Weight: 73.8 / 84.9 lbs
