Description
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

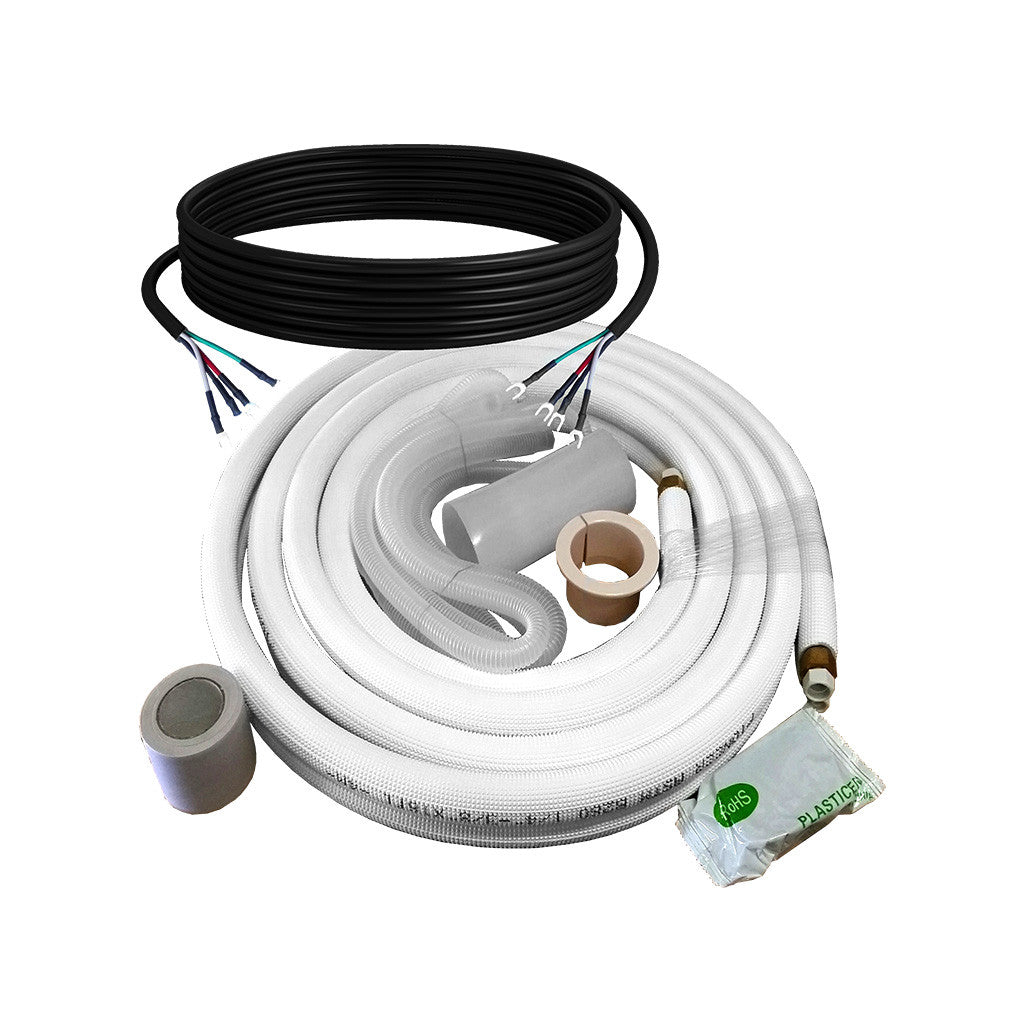

NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Overview
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 18,000 BTU/H with 21.8 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 19,000 BTU/H with 10.7 HSPF2 / 3.30 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- One-Way Ceiling Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified

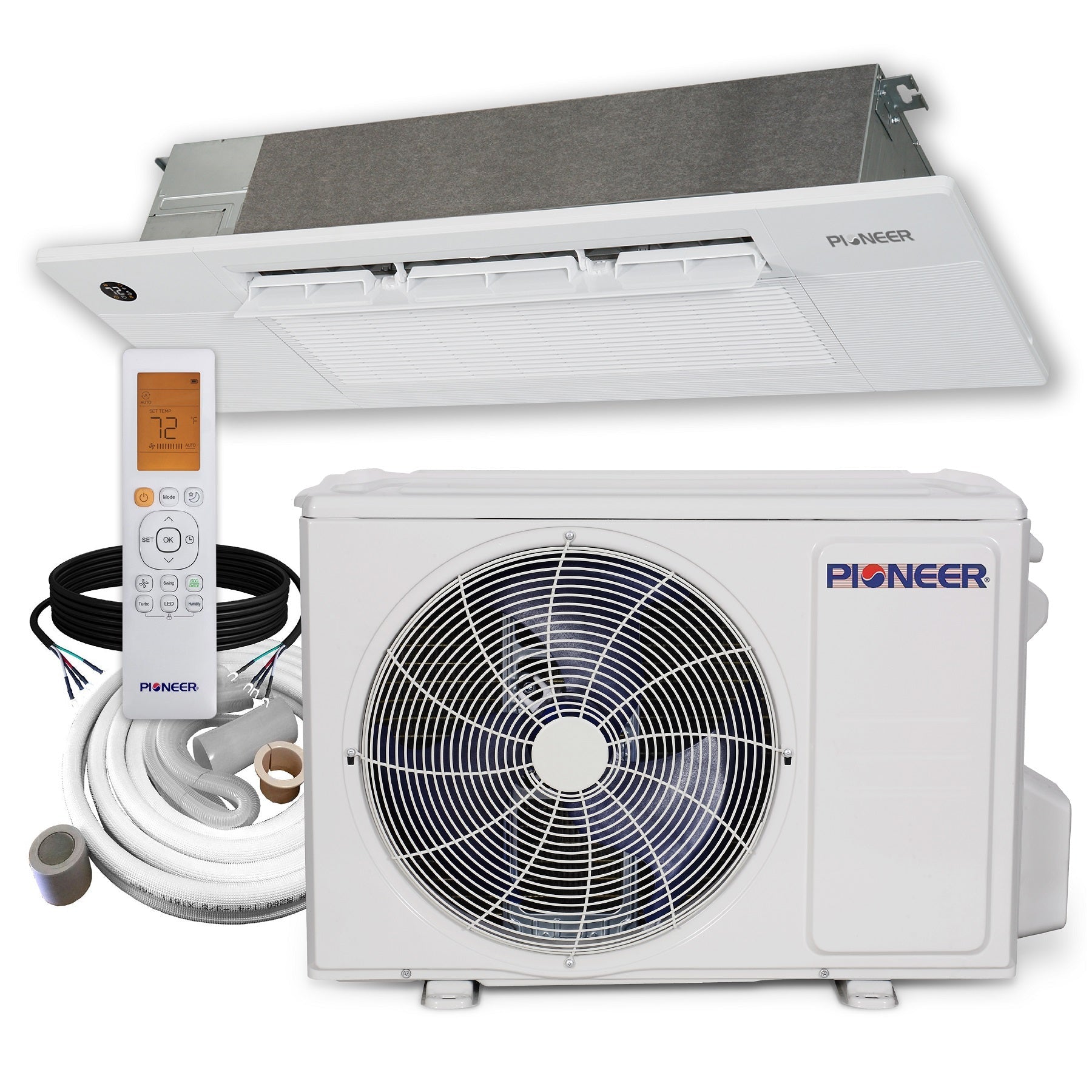

What's Included
- Indoor Unit
- Outdoor Unit
- Decorative Panel

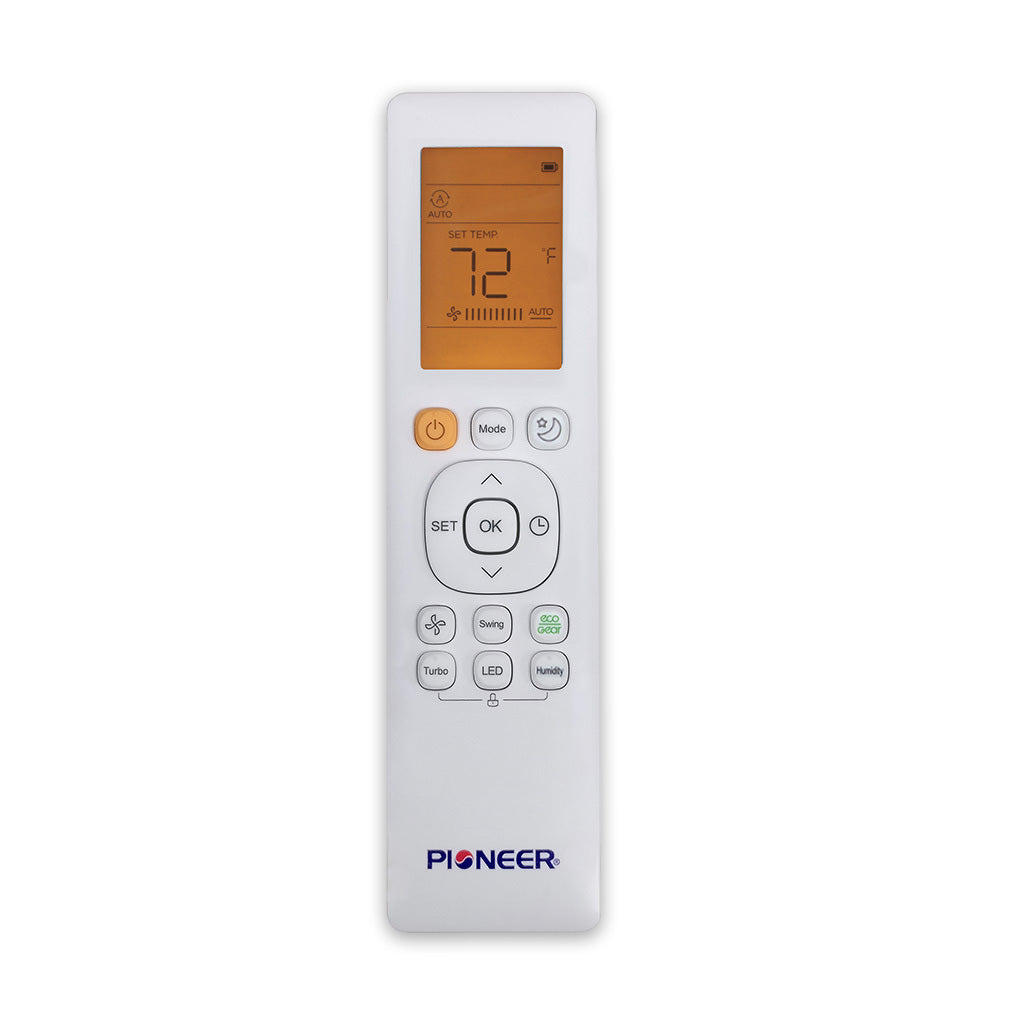

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 3,200~18,100 BTU/h
- Cooling SEER2: 21.8 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 19,000 BTU/h
- Heating Capacity Range: 5,300~21,500 BTU/h
- Heating HSPF2: 10.7 BTU/W.h
- Heating C.O.P.2: 3.30 W/W
- Refrigerant Type: R410a
- Suitable Area: 400~650 Sq.F
Indoor Unit Data
- Model: CK018GMFILCFHD
- Air Flow (Turbo/Hi/Med/Lo): 680 / 598 / 510 / 352 CFM
- Sound Level (Hi/Med/Lo): 44 / 41 / 34 dB(A)
- Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
- Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
- Net / Carton Weight: 45.2 / 82.9 Lbs

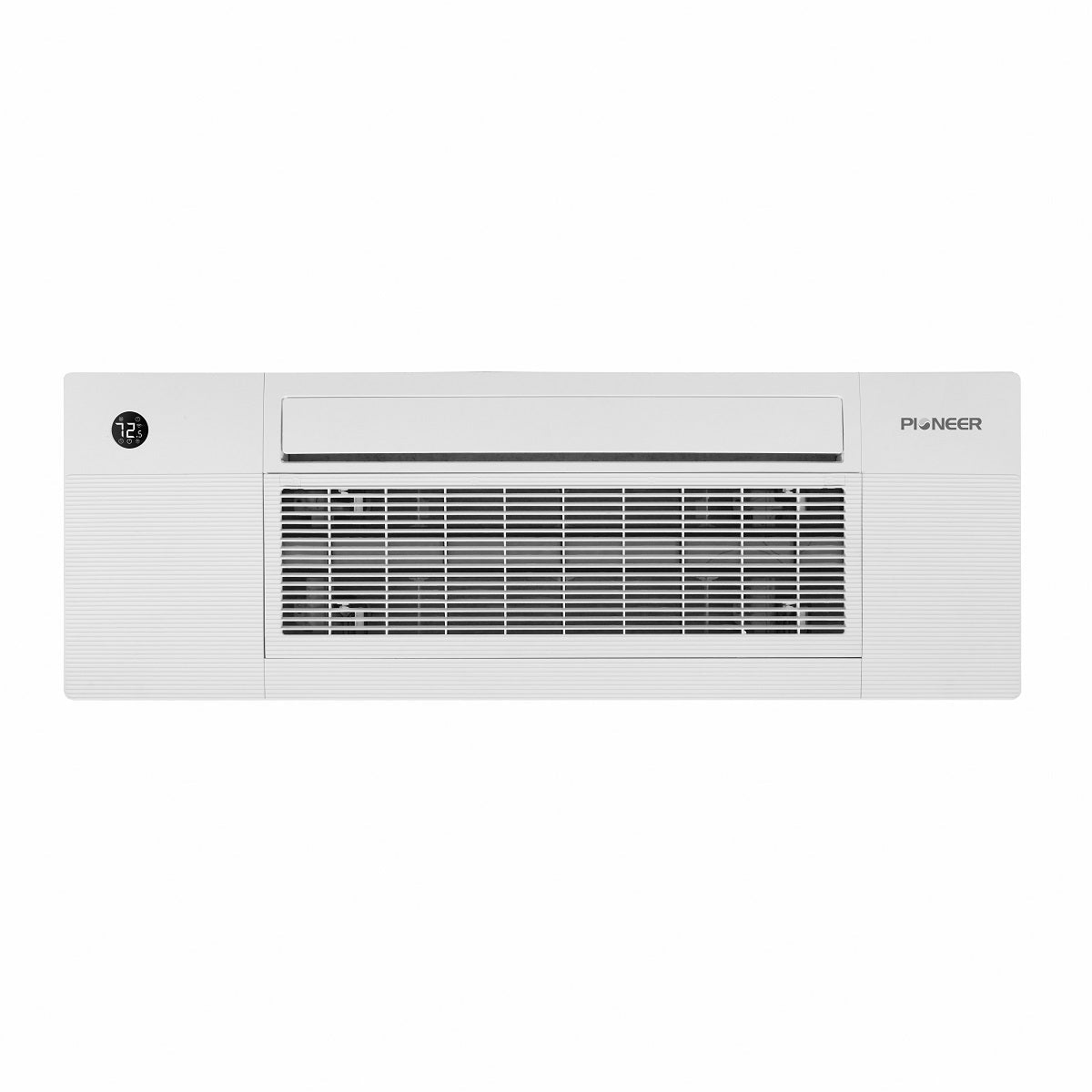

Panel Data
- Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
- Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
- Panel Net / Gross Weight: 24 / 29 Lbs

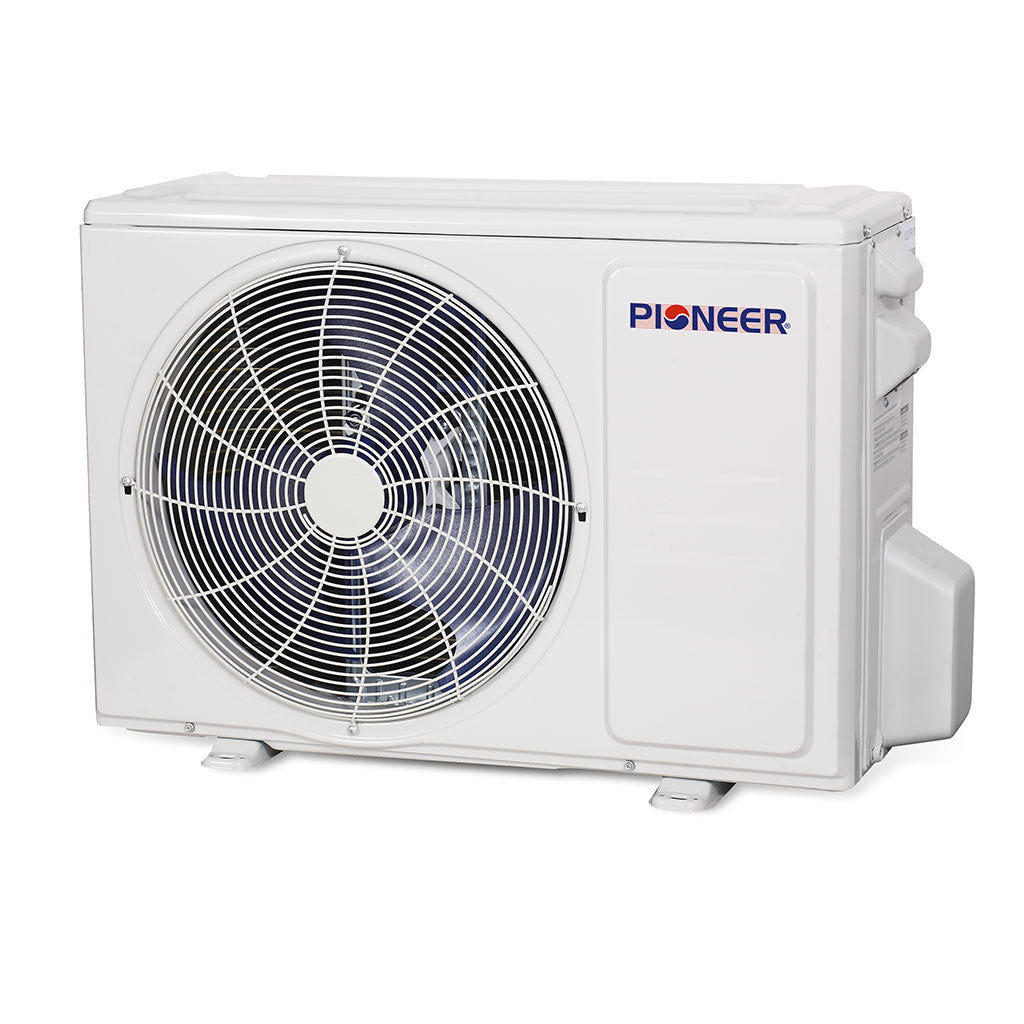

Outdoor Unit Data
- Model: YN018GMFI22RPE
- Sound Level: 58 dB(A)
- Net Dimensions (WDH): 35 x 13.5 x 26.5 Inches
- Carton Dimensions (WDH): 39.2 x 15.7 x 29.1 Inches
- Net / Gross Weight: 94.4 / 101 Lbs
- Breaker Needed: 20A (double-pole)
Manuals & Downloads
- Series Technical Brochure
- Series User Manual
- Series Installation Manual
- Series Service Manual
- Series Disassembly Guide
- CYK018GMFILCAD Submittal Sheet
- AHRI Certificate
- Energy Guide
