Description
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit
IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.
Summary
- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 18,000 BTU/H with 21.5 SEER/13 EER efficiency
- Heating capacity: 18,000 BTU/H with 10 HSPF/3.5 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $111.00
- Heating: $381.00
Features
- Dual Swing
- Dual Drainage
- Ultra Low Noise
- Ultra High Efficiency
- Energy-Star Certified
- Wi-Fi Enabled

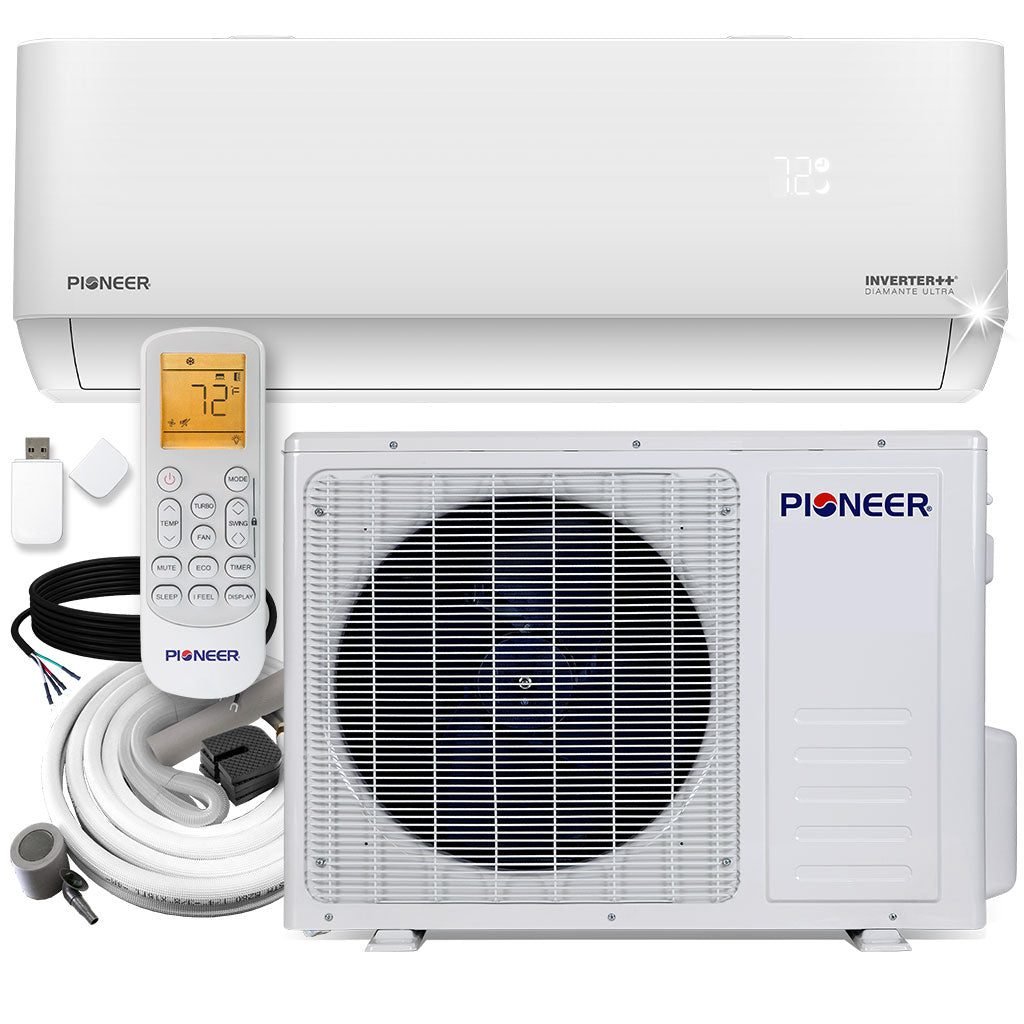

What's Included
- Indoor Unit
- Outdoor Unit

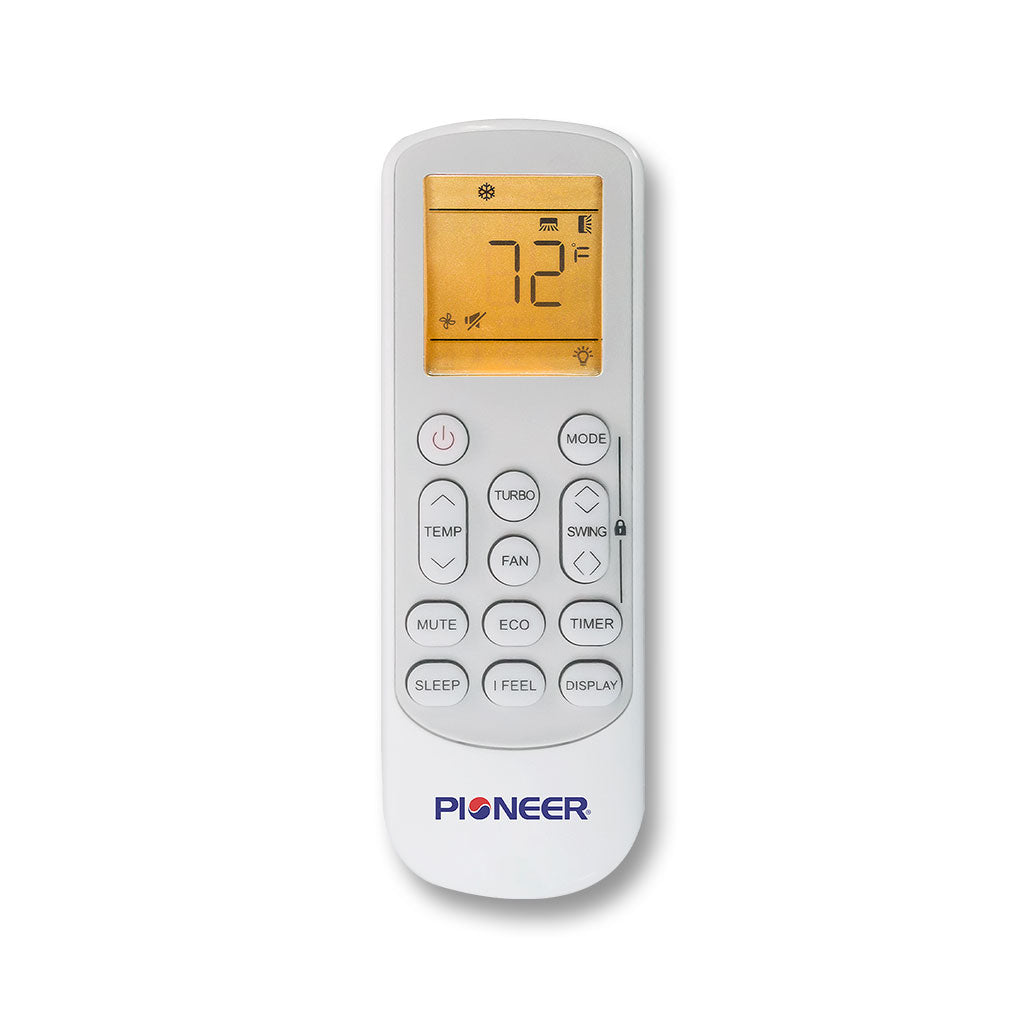

- Wireless Remote Control (with wall holder and batteries)

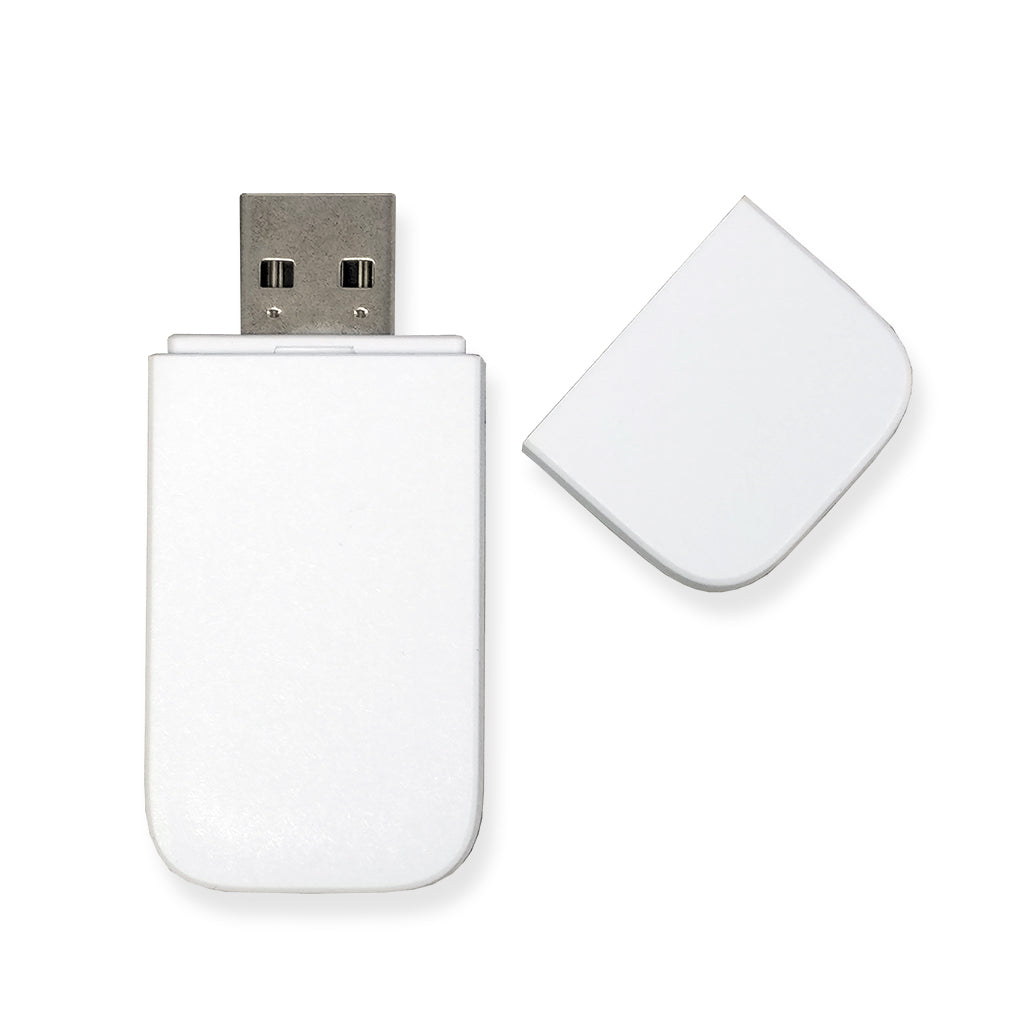

- Internet Control Module
- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts
- 5 years for Compressor
Performance Data
- Power Supply: 230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h (1.5 Ton)
- Rated Power Input (Cooling): 1350W
- Cooling SEER: 21.5 BTU/w
- Heating Rated Capacity: 18,000 BTU/h (1.5 Ton)
- Rated Power Input (Heating): 1310W
- Heating HSPF4: 10 BTU/w
- Refrigerant Type: R410A
- Recommended Application Area: 400~650 Sq.Ft

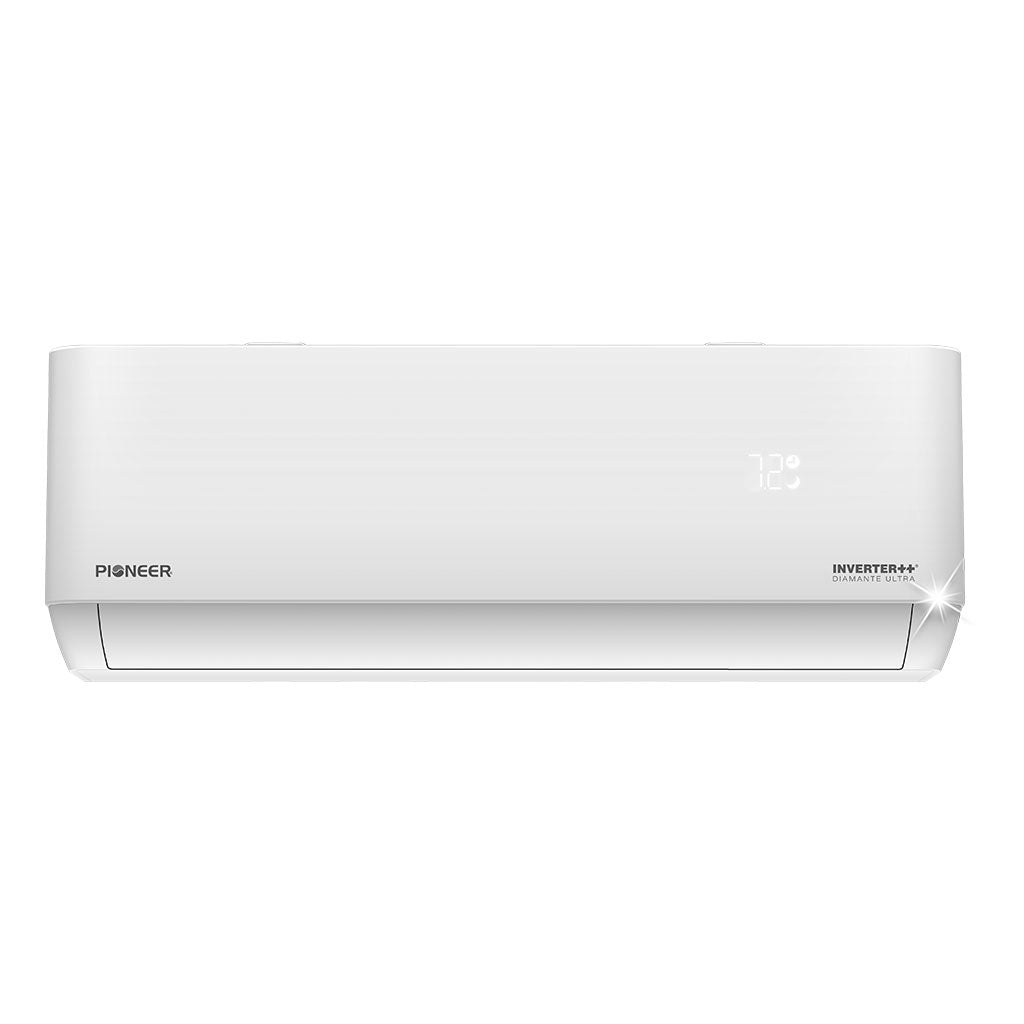

Indoor Unit Data
- Model Number: WT018GLFI22HLD
- Air Flow (Hi): 735 CFM
- Sound Level (Hi/Med/Lo/Mute): 45/40/35/31 dB(A)
- Net Dimensions (WDH): 43-3/8 x 8-3/4 x 13-1/8 Inches
- Carton Dimensions (WDH): 45-7/8 x 11-5/8 x 16 Inches
- Net / Gross Weight: 30.9 / 35.3 Lbs

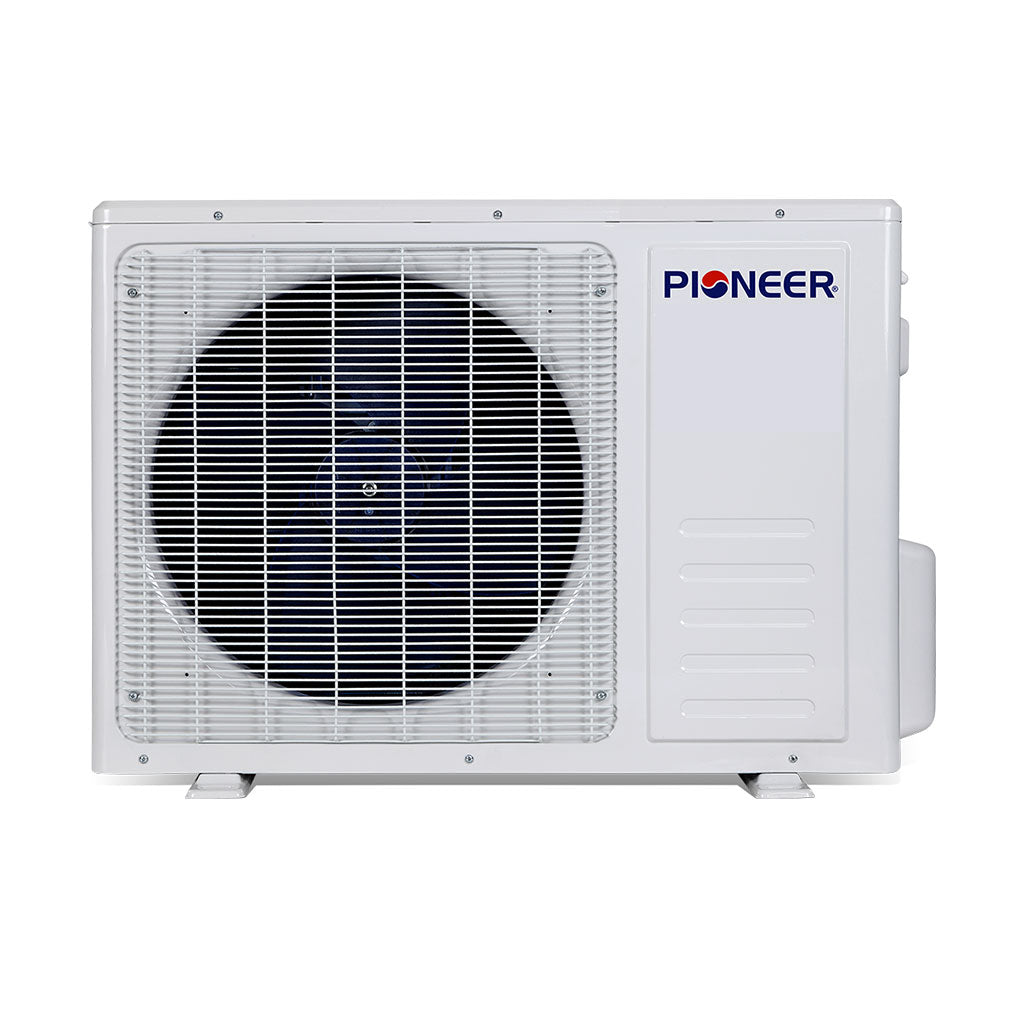

Outdoor Unit Data
- Model Number: YN018GLFI22RPD
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 33-1/4 x 15 x 27-1/2 Inches
- Carton Dimensions (WDH): 37-3/4 x 17 x 29-1/2 Inches
- Net / Gross Weight: 84.9 / 93.7 lbs
- Electrical Circuit Size: 20A (double-pole)
