Pioneer® 36,000 BTU 18 SEER2 Ducted Central Split Inverter+ Air Conditioner Heat Pump System, 2nd Generation

Performance

• Power Supply: 208~230V, 60Hz, 1Ph
• Cooling Rated Capacity: 33,000 BTU/h
• Cooling SEER2: 18 BTU/w
• Cooling EER2: 10.1 BTU/w
• Heating Rated Capacity: 38,000 BTU/h
• Heating HSPF2: 9.5 BTU/W.h
• Heating C.O.P.2 (47°F/5°F): 3.3 / 2.1 W/W
• Communicating system with dedicated signal transmission
• Refrigerant Type: R410a
• Suitable Area: 1,200 Sq.F
• Includes 10 kW Electric Strip Heater w/ breaker
• AHRI Estimated Annual Operating Costs:
• Cooling: $264.00
• Heating: $730.00

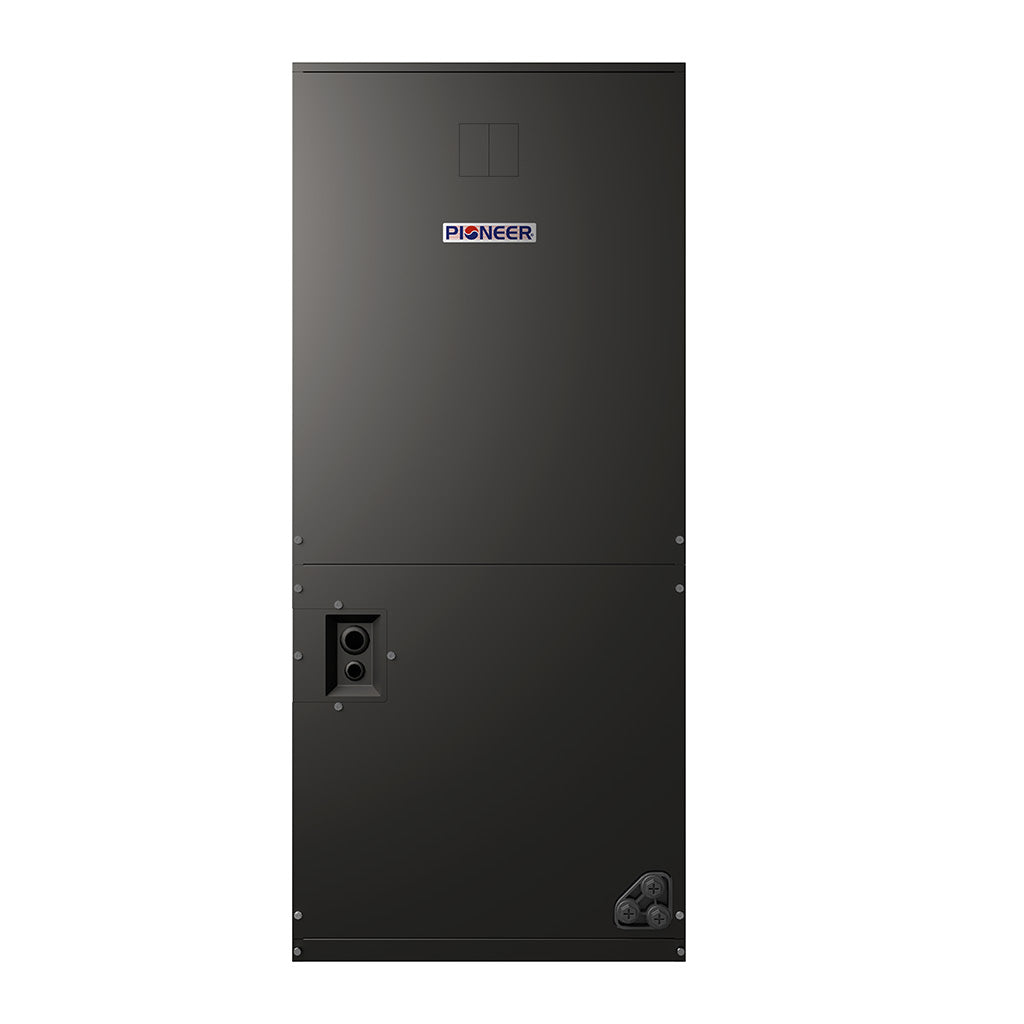

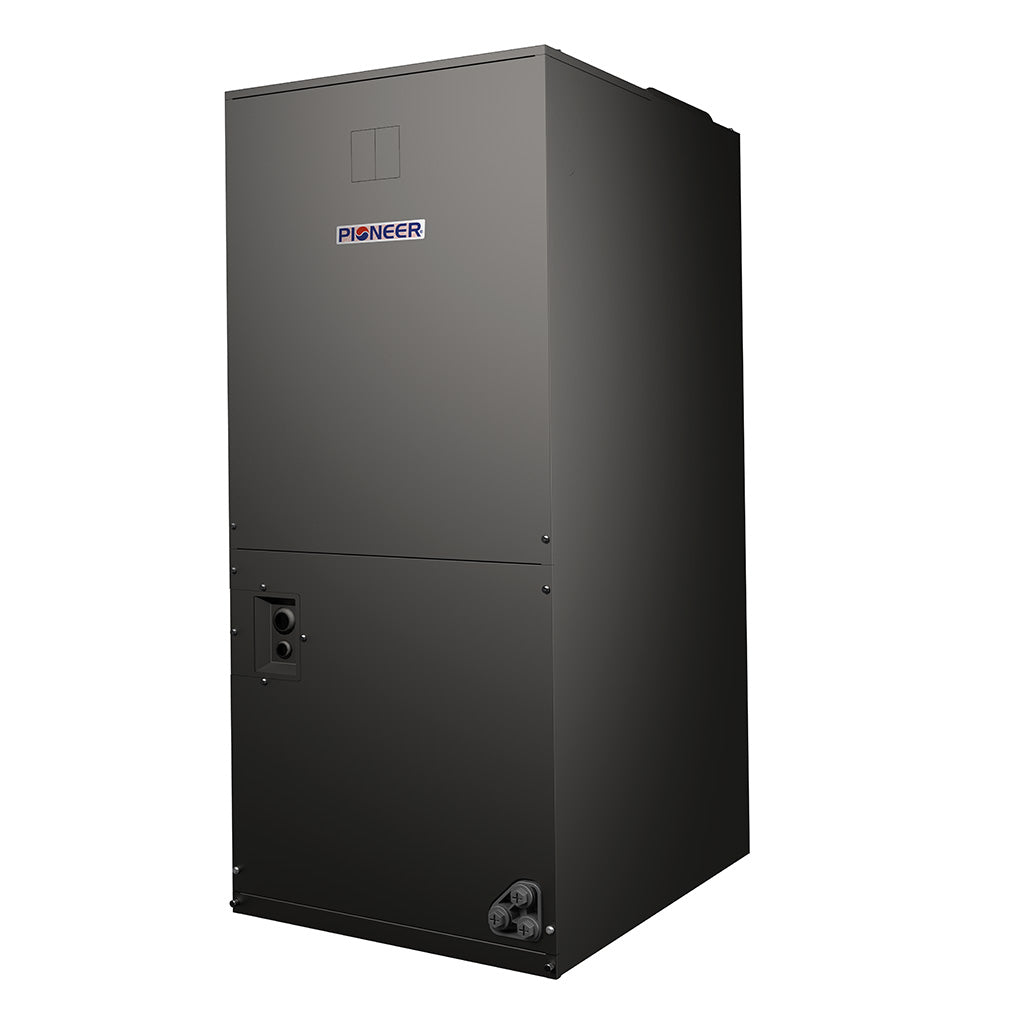

Indoor Unit

• Model: DR036GHFD18HT2
• Cooling Capacity Range: 11800~36800 BTU/h
• Heating Capacity Range: 8900~38200 BTU/h
• Air Flow: 1120 CFM
• Sound Level: 57 dB(A)
• Fan Motor Type: Multi-Speed ECM
• Net Dimensions (WDH): 19-5/8 × 21-5/8 × 46-1/8 Inches
• Carton Dimensions (WDH): 22-1/2 × 25-3/8 × 49-5/8 Inches
• Net / Gross Weight: 140 / 163 Lbs

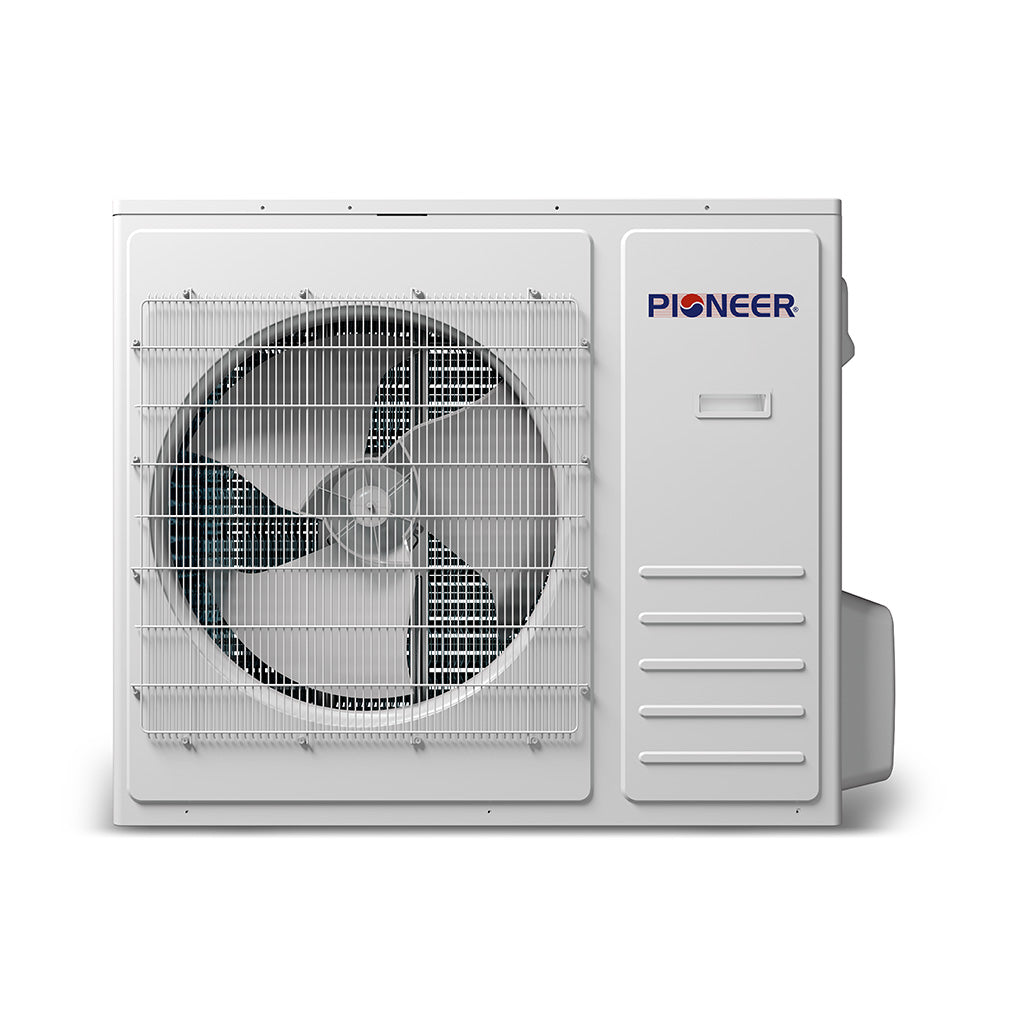

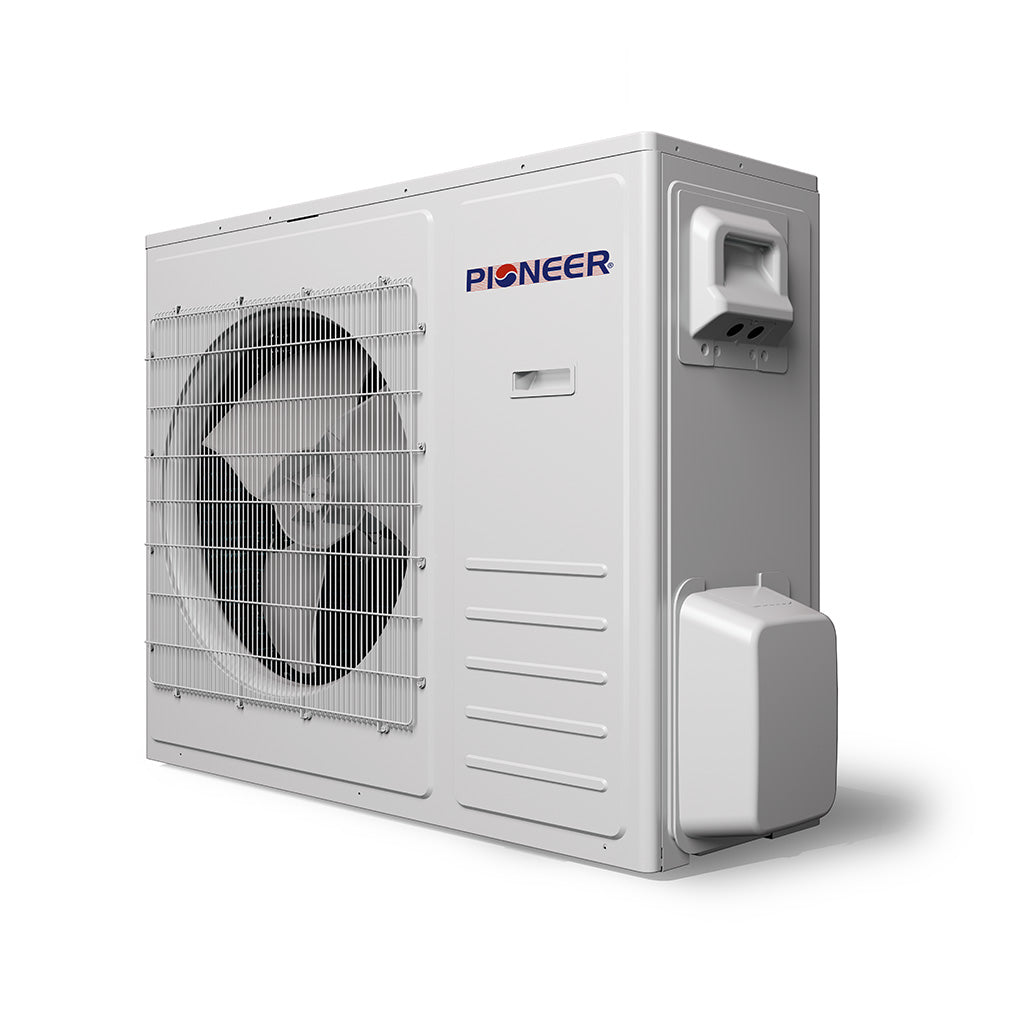

Outdoor Unit

• Model: YH3036GHFD18R2

• Sound Level: 57 dB(A)
• Metering Device: EXV
• Operating Temperatures: (-13°F - 75°F/Heating)/(5° - 122°F/Cooling)
• Net Dimensions (WDH): 37-3/8 x 13-3/8 x 33 Inches
• Carton Dimensions (WDH): 43-3/4 x 18-1/8 x 36-1/4 Inches
• Net / Gross Weight: 148 / 159 Lbs

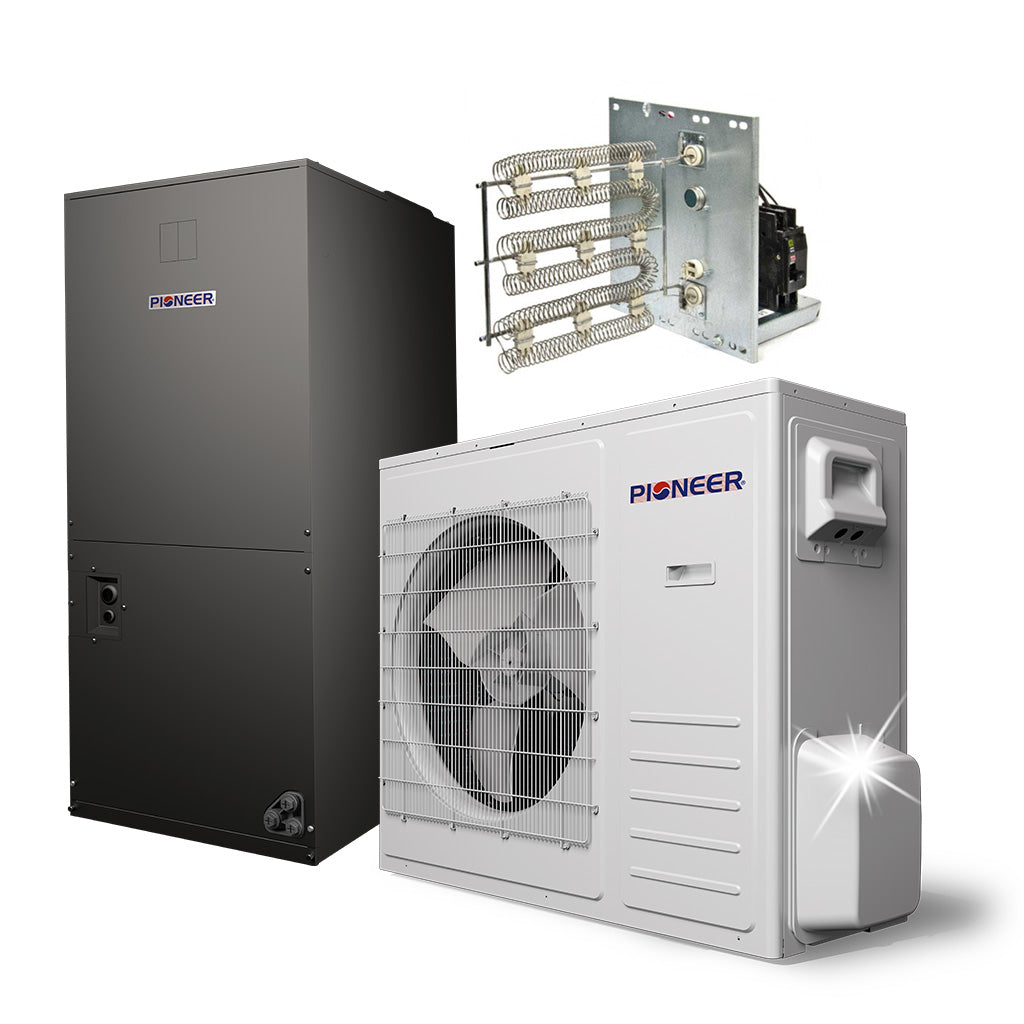

What's Included

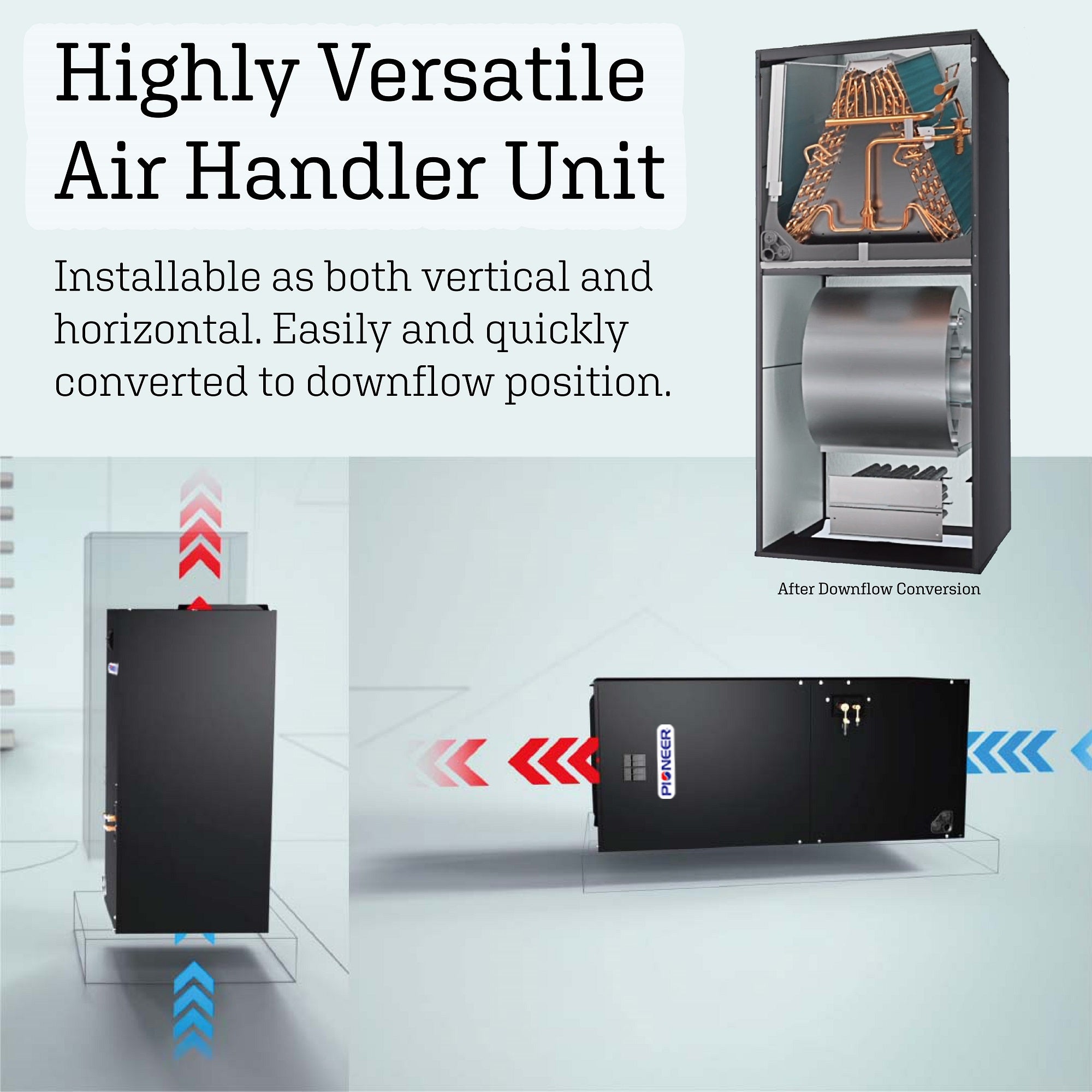

• Indoor Unit (Downflow-capable)

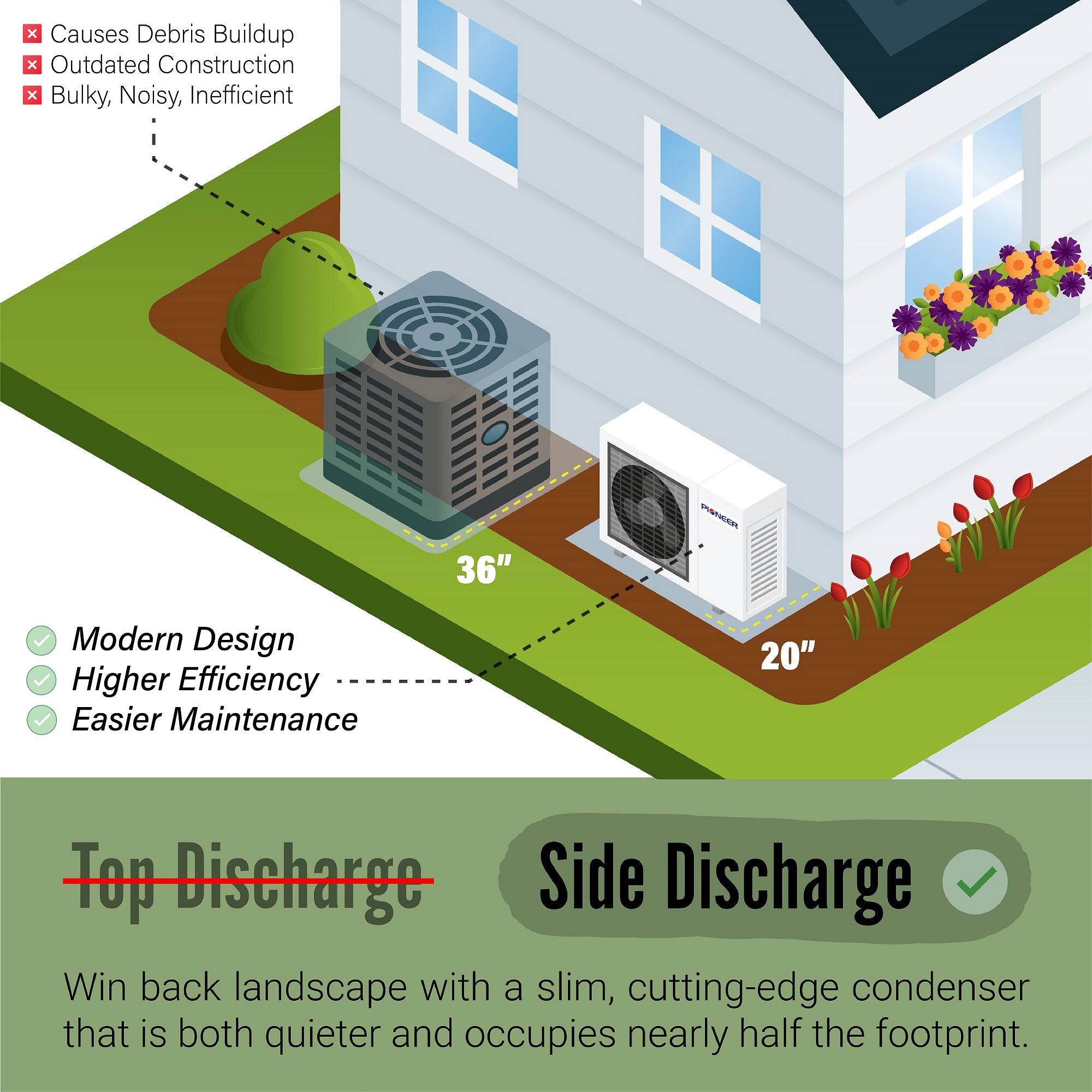

• Outdoor Unit (Side-Discharge)
• Electric Strip Heater (10 kW w/ breaker)
• Installation Manual
• User’s Manual
• Manufacturer Warranty

Manuals & Downloads

• Series Technical Brochure
• Indoor Section Installation Manual
• Outdoor Section Installation Manual
• Indoor Section Service Manual
• Outdoor Section Service Manual
• DYR3036GMFI18R Submittal Sheet
• AHRI Certificate
• Energy Guide
