Description
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit
IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.
Summary

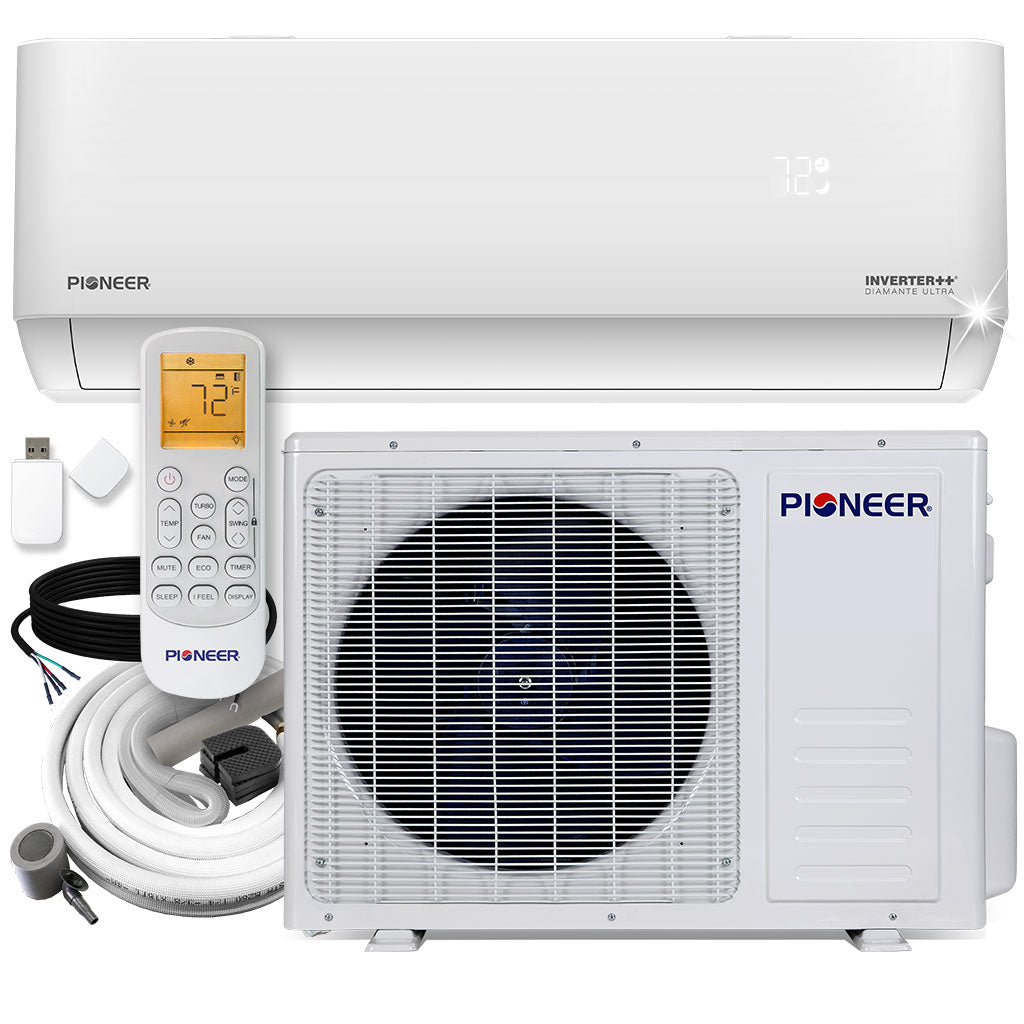

- Ultra High Efficiency Diamante Ultra Ductless Mini Split Heat Pump System
- Cooling capacity: 9,000 BTU/H with 22 SEER/12.5 EER efficiency
- Heating capacity: 9,500 BTU/H with 10 HSPF efficiency
- Voltage: 110/120V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Low Ambient Unit (-13°F)
- Wireless Internet Access Included (Via Free Smartphone App)
- AHRI Estimated Annual Operating Costs:
- Cooling: $54.00
- Heating: $201.00
Features
- Dual Swing
- Dual Drainage
- Ultra Low Noise
- Ultra High Efficiency
- Energy-Star Certified
- Wi-Fi Enabled
What's Included
- Indoor Unit
- Outdoor Unit

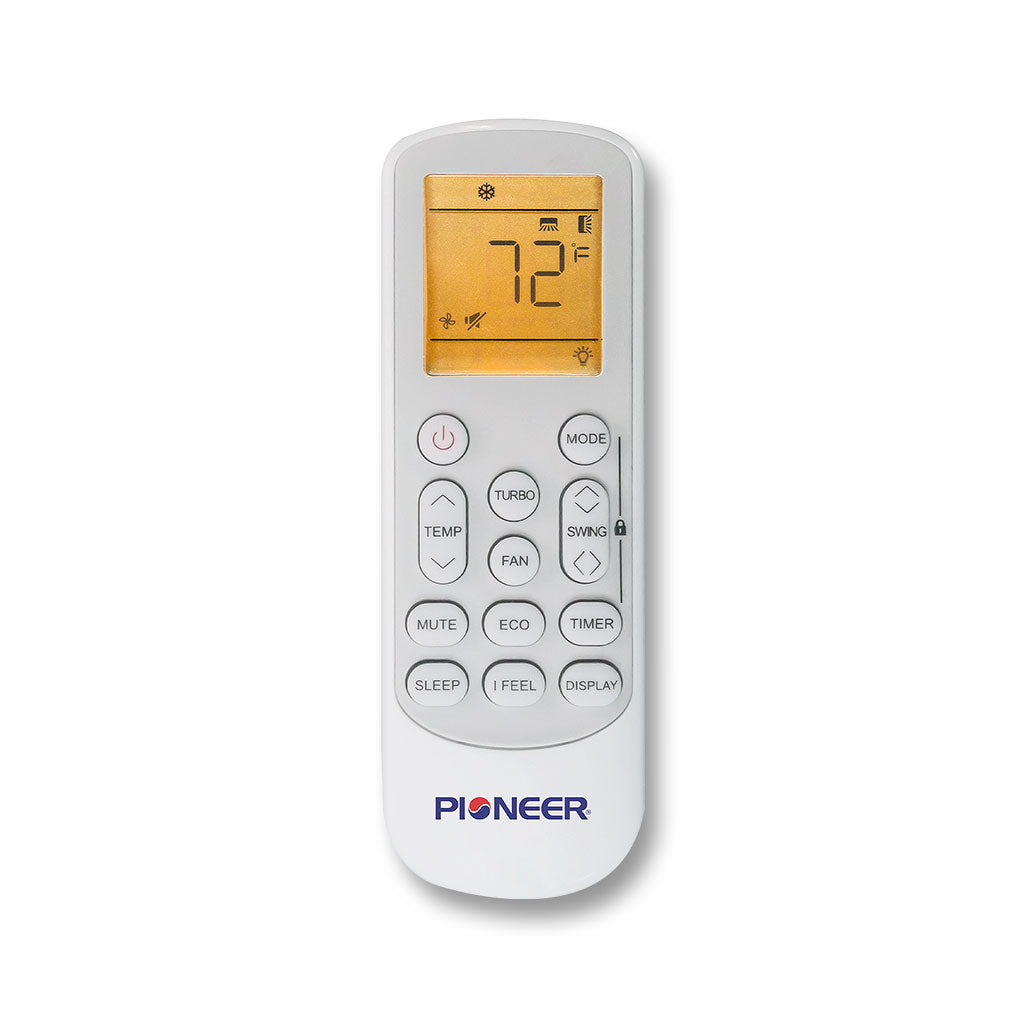

- Wireless Remote Control (with wall holder and batteries)

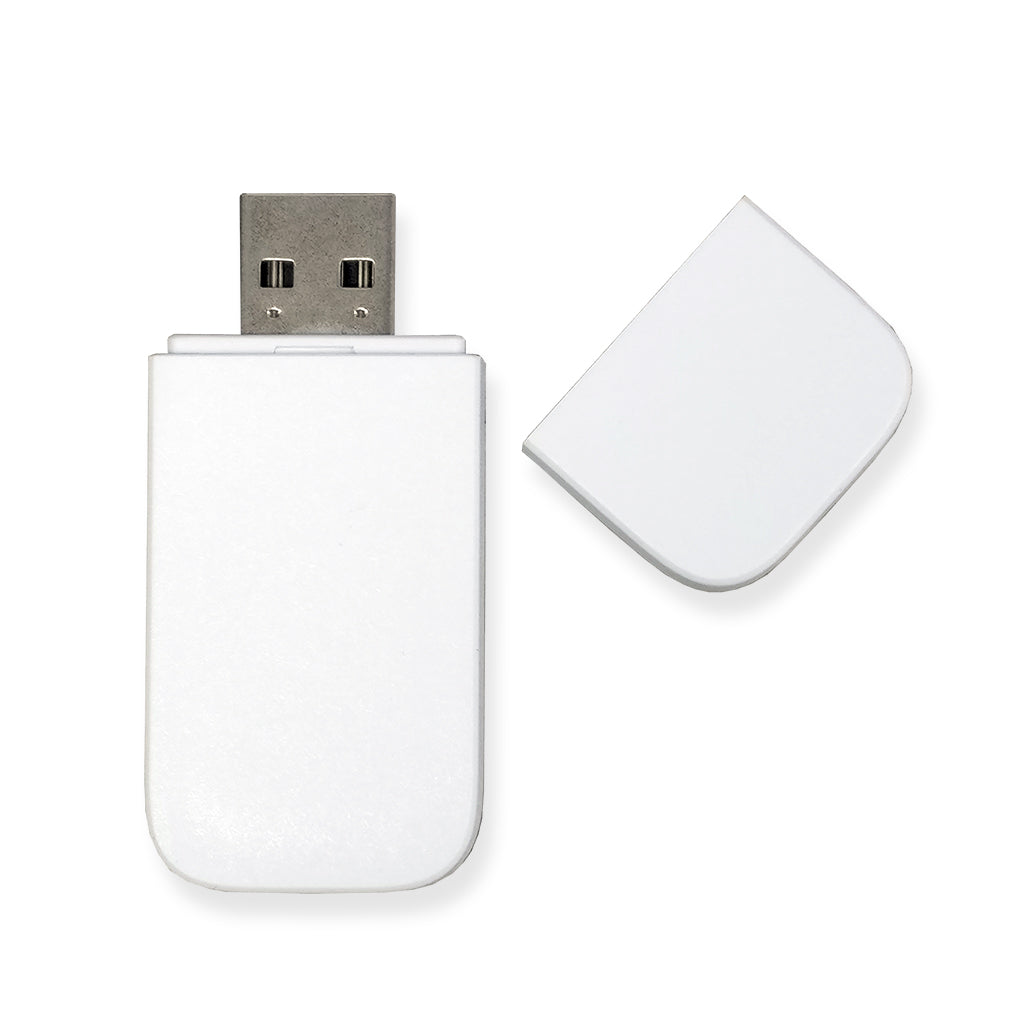

- Internet Control Module

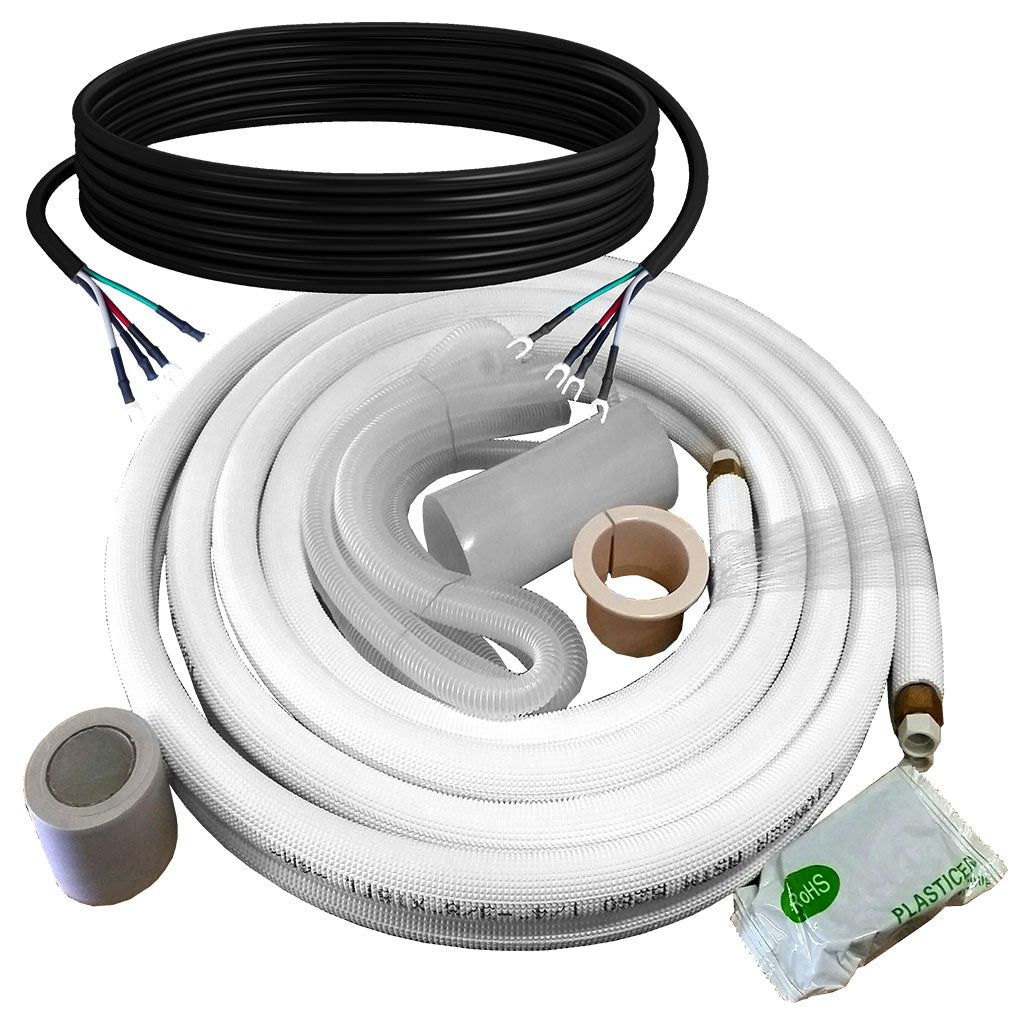

- 16 Ft. Copper Lines
- 16 Ft. Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Our Guarantee
- 5 years Warranty for Parts
- 5 years for Compressor
Performance Data
- Power Supply: 115V, 60Hz, 1Ph
- Cooling Rated Capacity: 9,000 BTU/h (0.75 Ton)
- Rated Power Input (Cooling): 710W
- Cooling SEER: 22 BTU/w
- Heating Rated Capacity: 9,600 BTU/h (0.8 Ton)
- Rated Power Input (Heating): 730W
- Heating HSPF4: 10 BTU/w
- Refrigerant Type: R410A
- Recommended Application Area: 100~350 Sq.Ft

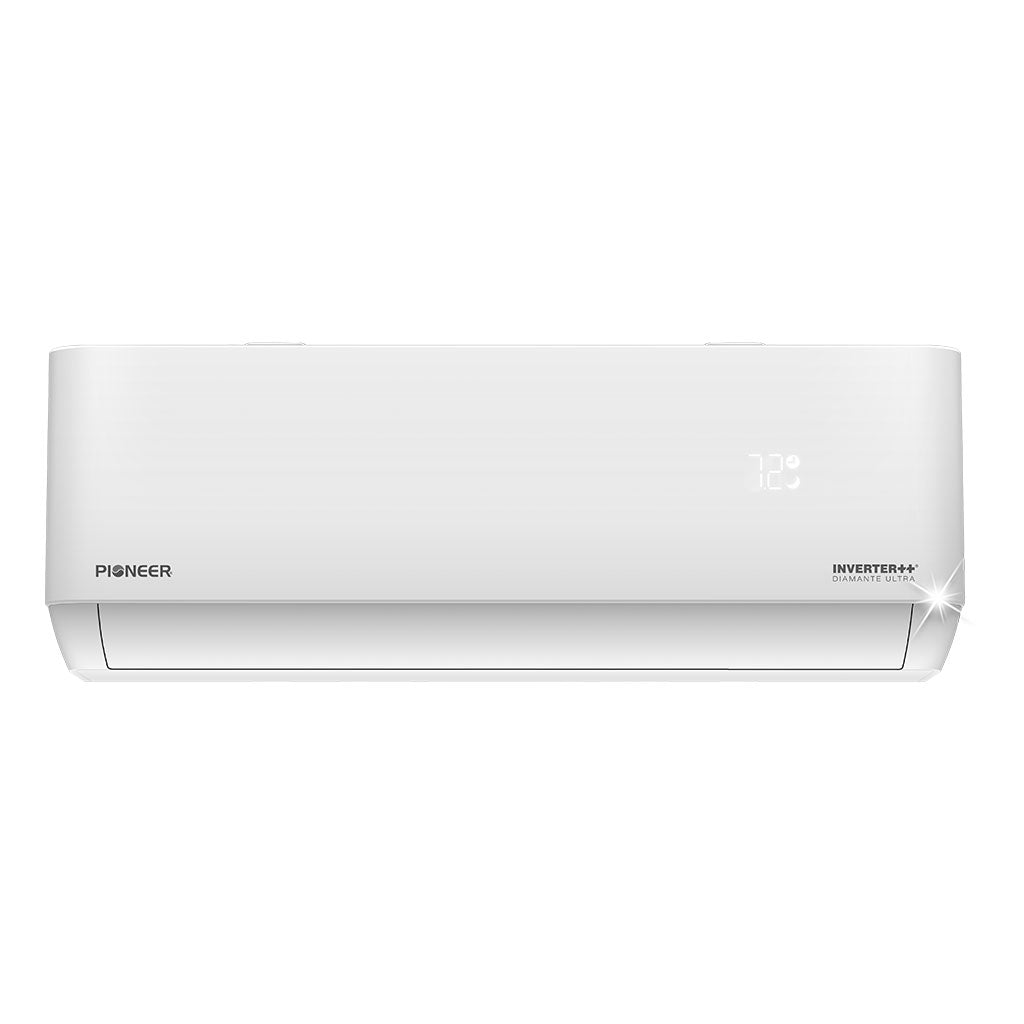

Indoor Unit Data
- Model Number: WT009ALFI22HLD
- Air Flow (Hi): 382 CFM
- Sound Level (Hi/Med/Lo/Mute): 39/34/29/27 dB(A)
- Net Dimensions (WDH): 32-1/4 x 7-5/8 x 12 Inches
- Carton Dimensions (WDH): 35 x 10-3/8 x 15 Inches
- Net / Gross Weight: 19.8 / 24.3 Lbs

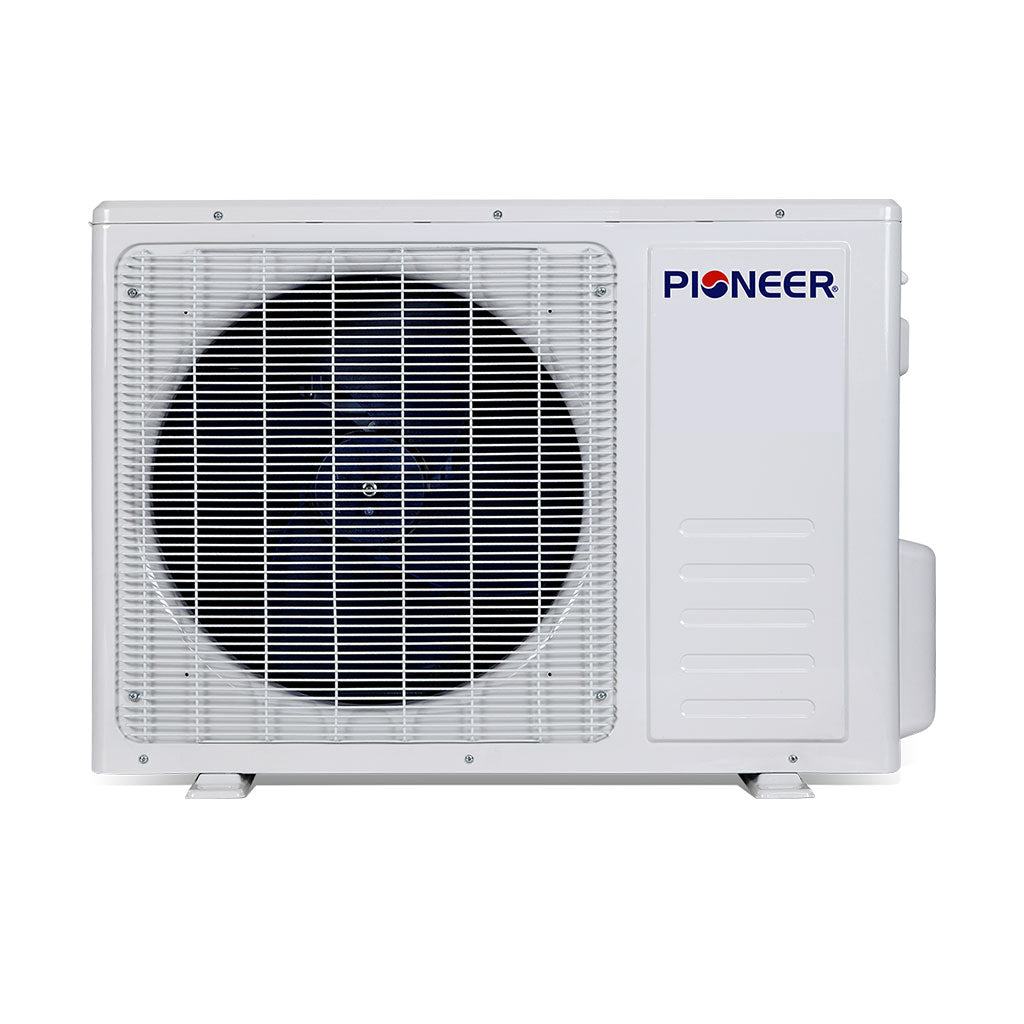

Outdoor Unit Data
- Model Number: YN009ALFI22RPD
- Sound Level: 50 dB(A)
- Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
- Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
- Net / Gross Weight: 51.8 / 56.2 lbs
- Electrical Circuit Size: 20A (single-pole)
Manuals & Documents
Estimate shipping
Questions & Answers
QUESTIONS & ANSWERS
Have a Question?
Be the first to ask a question about this.
Reviews
- Reviews
- Questions
Very nice unit used it for a wine room.
I use the 9000 unit in a wine room to cool. It works great for that. The lowest setting for the unit is 62° so to get it to cool it slightly more than that I put the remote a pie, and in a place That was secluded from where the air was blowing. That caused the wind to get chilled to 55° or to 57° . Another great thing about the unit was that I didn’t have to re-flare the ends of the line, after inspection I seen that they were done properly and in good shape. Usually you have to cut the factory ends off and redo them. I so far everything works great and the customer is very pleased.
HAPPY customer
My third Pioneer mini split. I love them all and I did the install myself . My biggest complaint is the WIFI module. My original Pioneer runs fine on my Google nest home WIFI and when I called about my two new splits not able to use the existing WIFI the tech just said "sorry".... A disappointing experience with my smart home fail!...otherwise this would have been a glowing review..dennis
Highseer
Thank you for the review. We would love to get your WiFi up and running, could you please send an email with more details to support@pdhvac.com? We can walk through some troubleshooting steps to resolve that issue and get your unit integrated with your smart home!
After paying for an installation of $1000, is working great. We did not know how to install it, you have to have some idea about it. That's only why i will do 4 stars instead of 5. Ather then that we love it.
Everything is going well. Installing in a 5th wheel toy hauler diy and taking time. It’s hot outside
This is comparable to other manufacturers top of the line mini splits but at half the price!
