Description

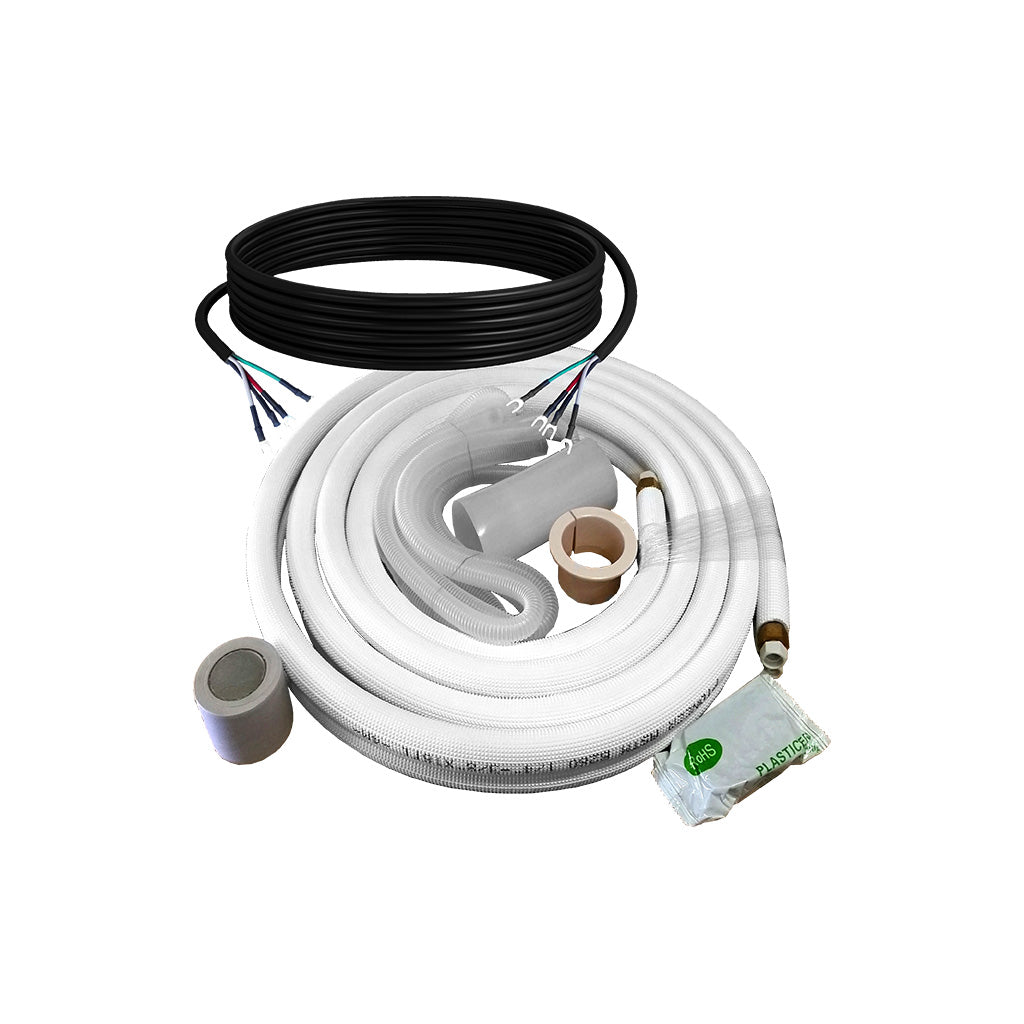

NOTE: The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 18,000 BTU/h
- Cooling SEER2: 22.4 BTU/W.hr
- Heating Capacity: 18,000 BTU/h
- Heating HSPF: 10.4 BTU/w
- Suitable Area: 350~600 Sq.F
- Air Flow (Hi/Med/Lo): 500 / 441 / 382 / 323 CFM
- Sound Level (Hi/Med/Lo): 45.0 / 43.5 / 30.5 dB(A)
- Net Dimensions (WDH): 31-1/4 x 7-7/8 x 24-1/2 Inches
- Carton Dimensions (WDH): 34 x 11 x 28-1/4 Inches
- Net / Gross Weight: 32.8 / 41.5 Lbs
Manuals & Documents

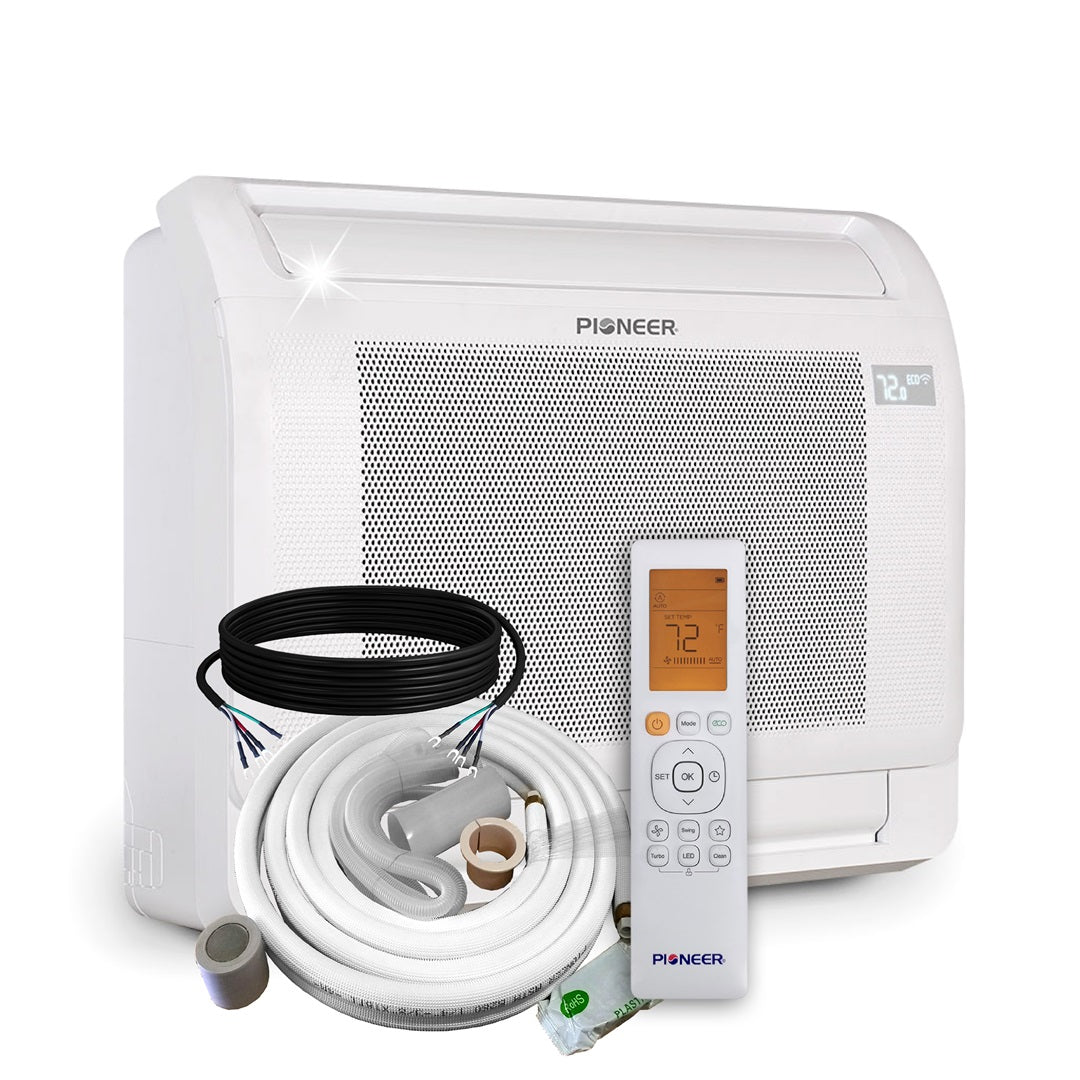

What's Included

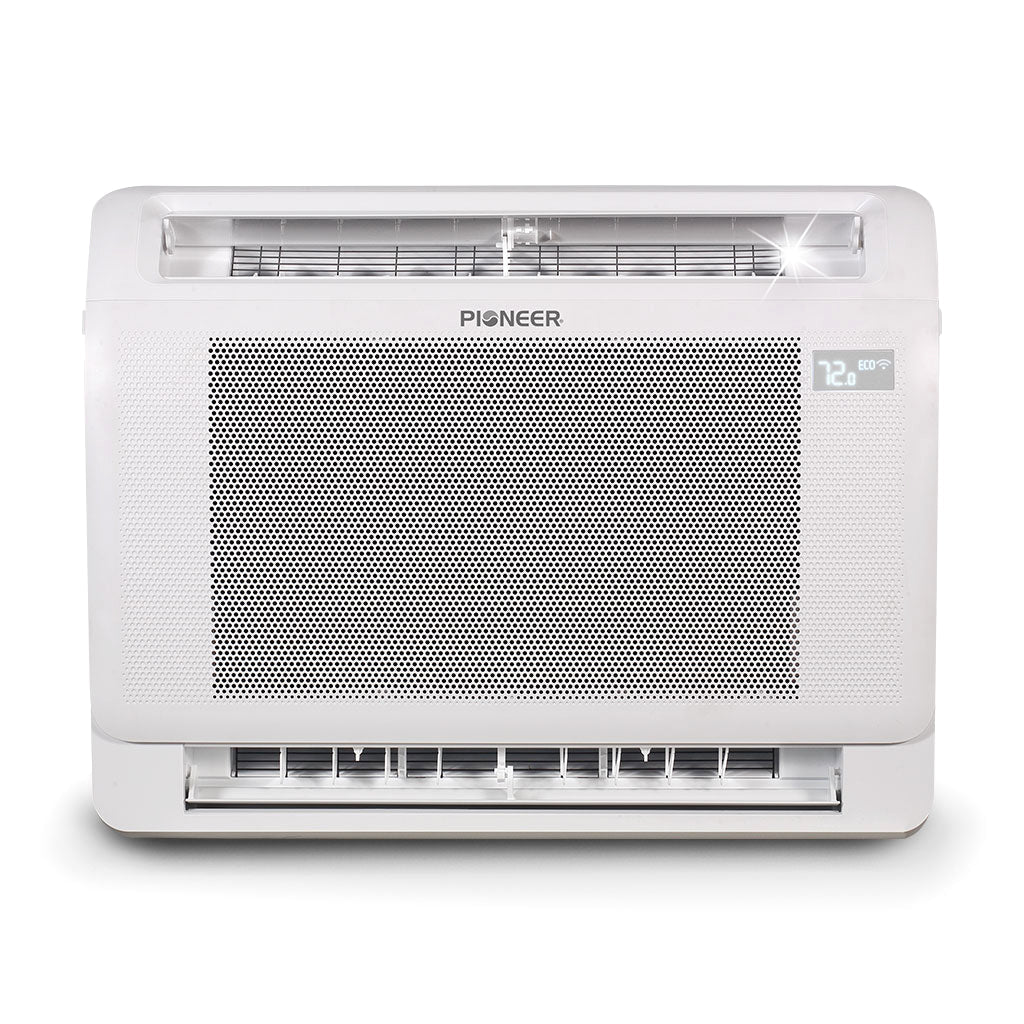

- Indoor Unit

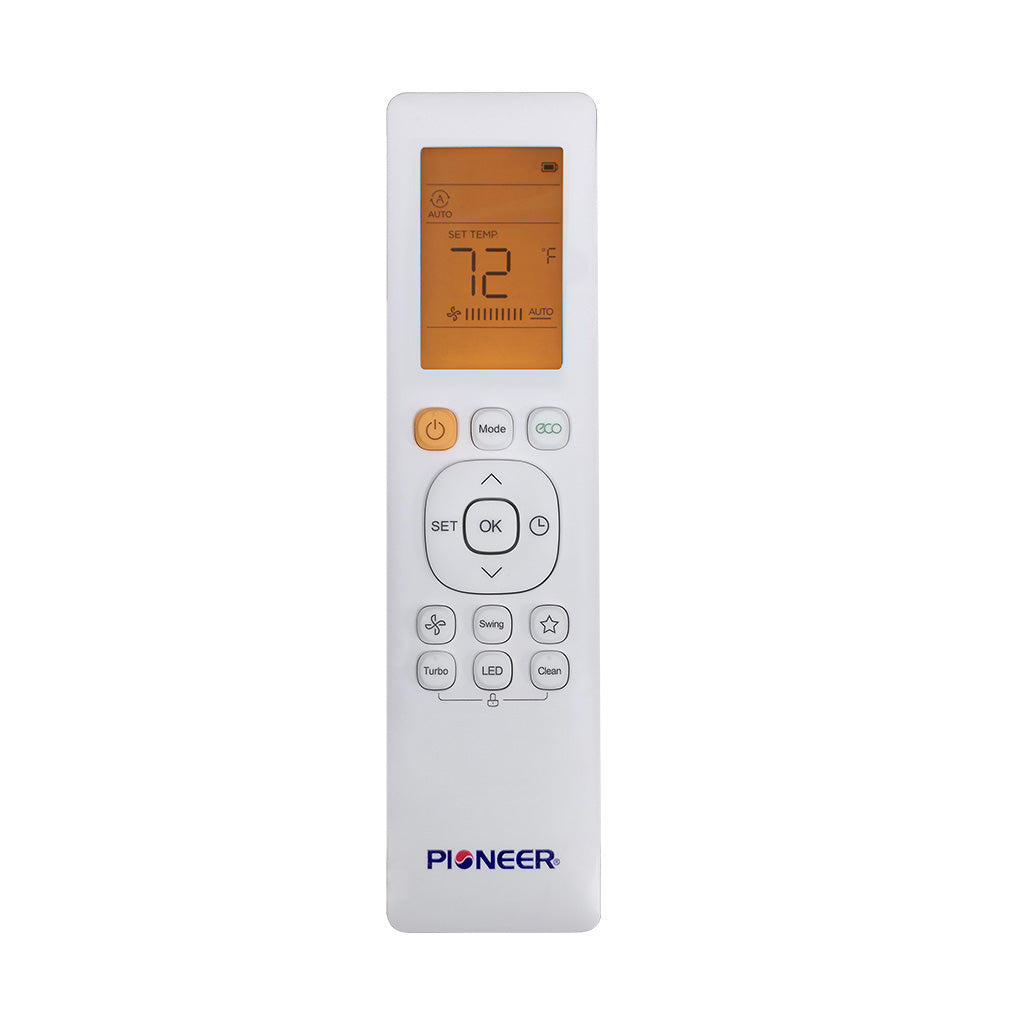

- Wireless Remote Control
- Full Installation Kit
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
