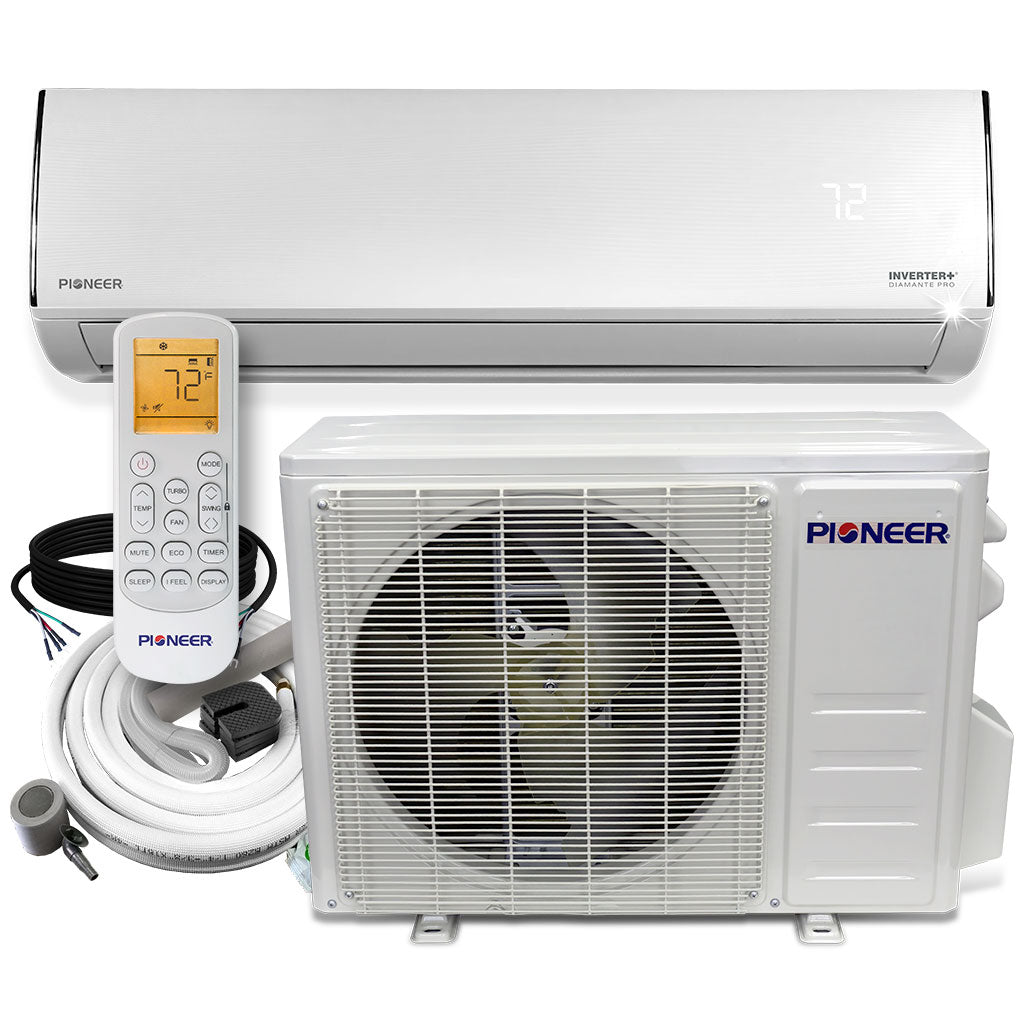

Pioneer® Diamante Series 9,000 BTU 20 SEER Ductless Mini-Split Air Conditioner Inverter+ Heat Pump Full Set 115V with 16 Ft. Kit

SKU: WYT009ALFI19RL

Price:
Sale price$608.00 Regular price$839.00

Shipping calculated at checkout

Financing:
Stock:
In stock

Pickup available at Parker Davis HQ

Usually ready in 24 hours

Description

R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit

IMPORTANT NOTE:
The copper tubing is included in the outdoor unit cardboard box and the communication wiring kit is included in the indoor unit cardboard box. This product set is comprised of 2 cartons only.

Summary

  • High Efficiency Diamante Series Ductless Mini Split Heat Pump System
  • Cooling capacity: 9,000 BTU/H with 20 SEER/12 EER efficiency
  • Heating capacity: 9,500 BTU/H with 10.5 HSPF/3.4 COP efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall Mounted Air Conditioning & Heating System
  • Variable Speed DC Inverter Operation Mode
  • Low Ambient Unit (-13°F)
  • AHRI Estimated Annual Operating Costs:
    • Cooling: $59.00
    • Heating: $191.00

Features

  • Dual Swing
  • Dual Drainage
  • Low Noise
  • High Efficiency

Notes: See comparison table with WYS series

What's Included

  • Indoor Unit
  • Outdoor Unit

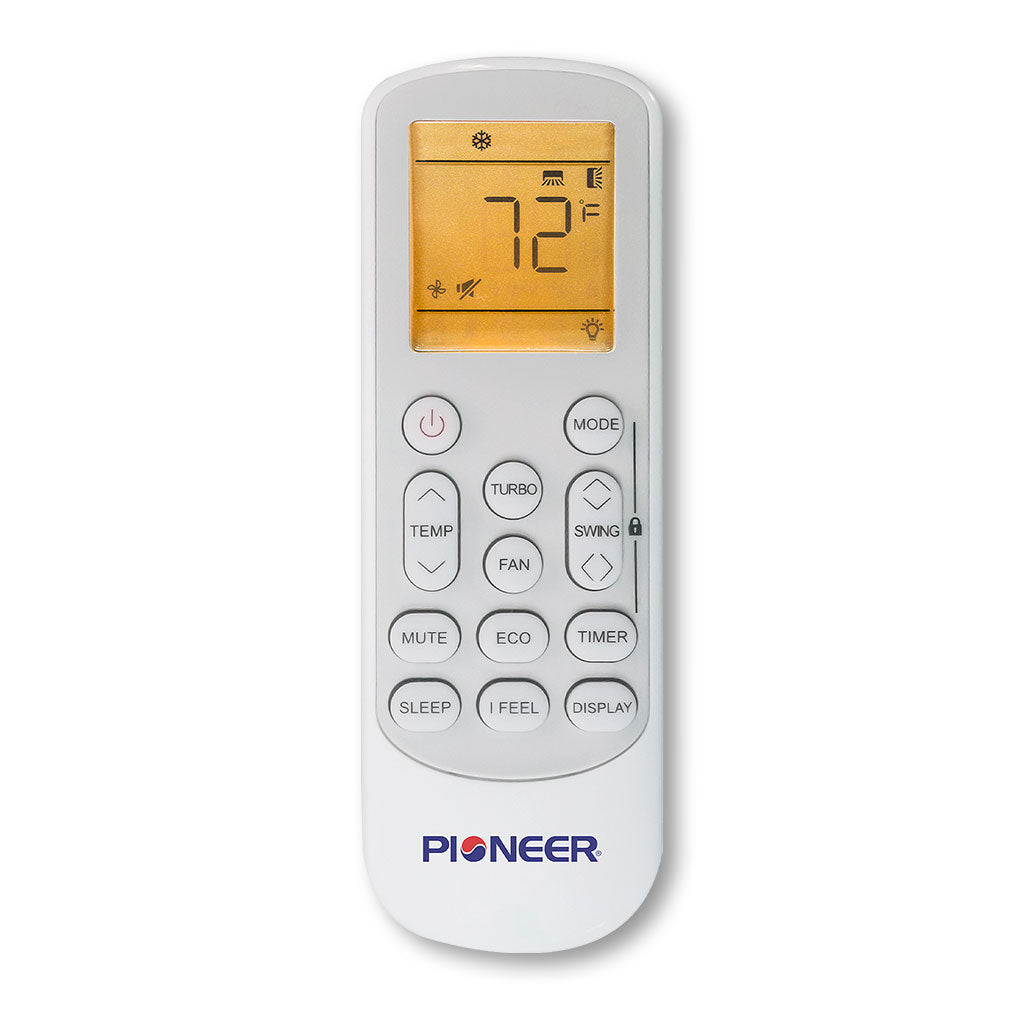

  • Wireless Remote Control (with wall holder and batteries)

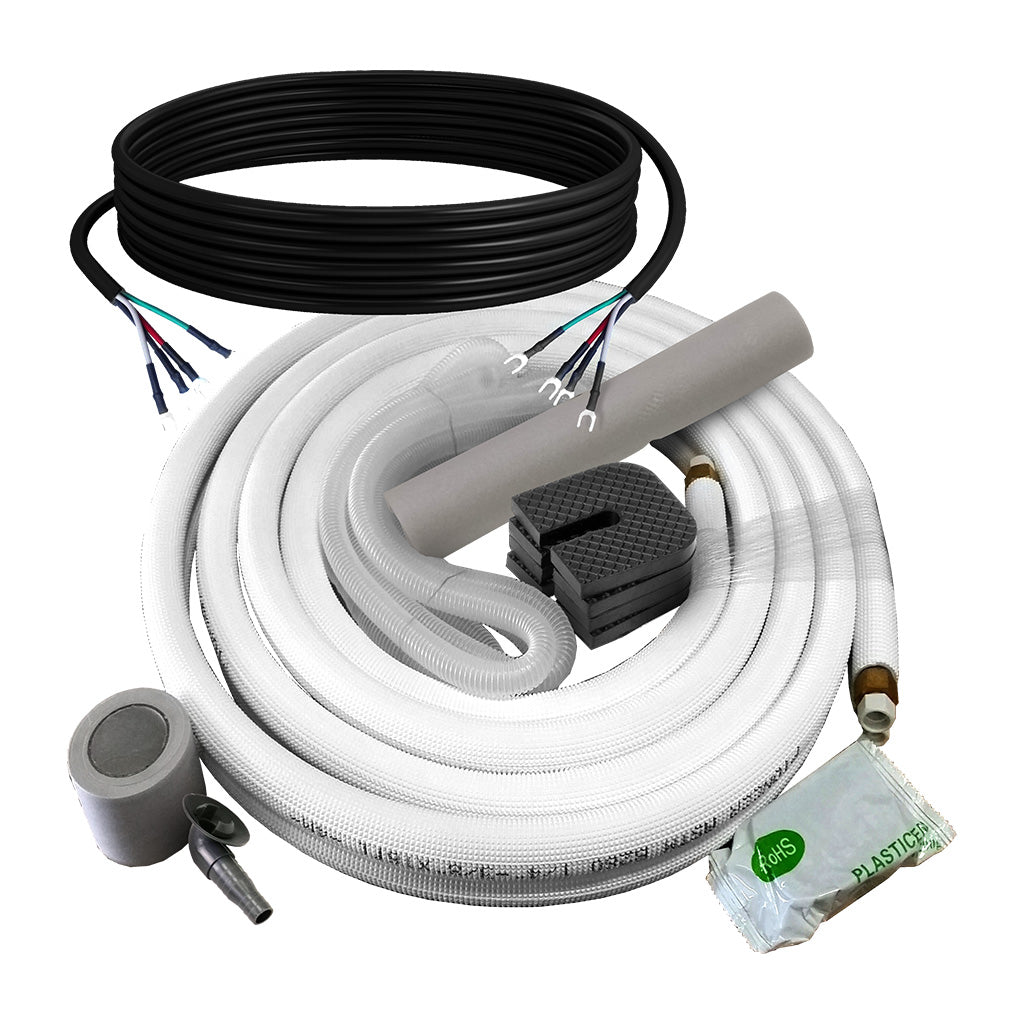

  • 16 Ft. Copper Lines
  • 16 Ft. Electrical Wire
  • 10 Ft. Drain for indoor/outdoor
  • Wall Passage Sleeve
  • Putty for Wall Hole
  • Leak Guard Sealer
  • Wrapping Tape
  • Installation Manual
  • User’s Manual

Our Guarantee

  • 5 years Warranty for Parts
  • 5 years Warranty for Compressor

    Performance Data

    • Power Supply: 115V, 60Hz, 1Ph
    • Cooling Rated Capacity: 9,000 BTU/h
    • Cooling Capacity Range: 5,800~10,300 BTU/h
    • Cooling SEER: 20 BTU/w
    • Heating Rated Capacity: 9,500 BTU/h
    • Heating Capacity Range: 5,400~10,900 BTU/h
    • Heating HSPF4: 10.5 BTU/w
    • Refrigerant Type: R410A/30
    • Suitable Area: 100~350 Sq.F

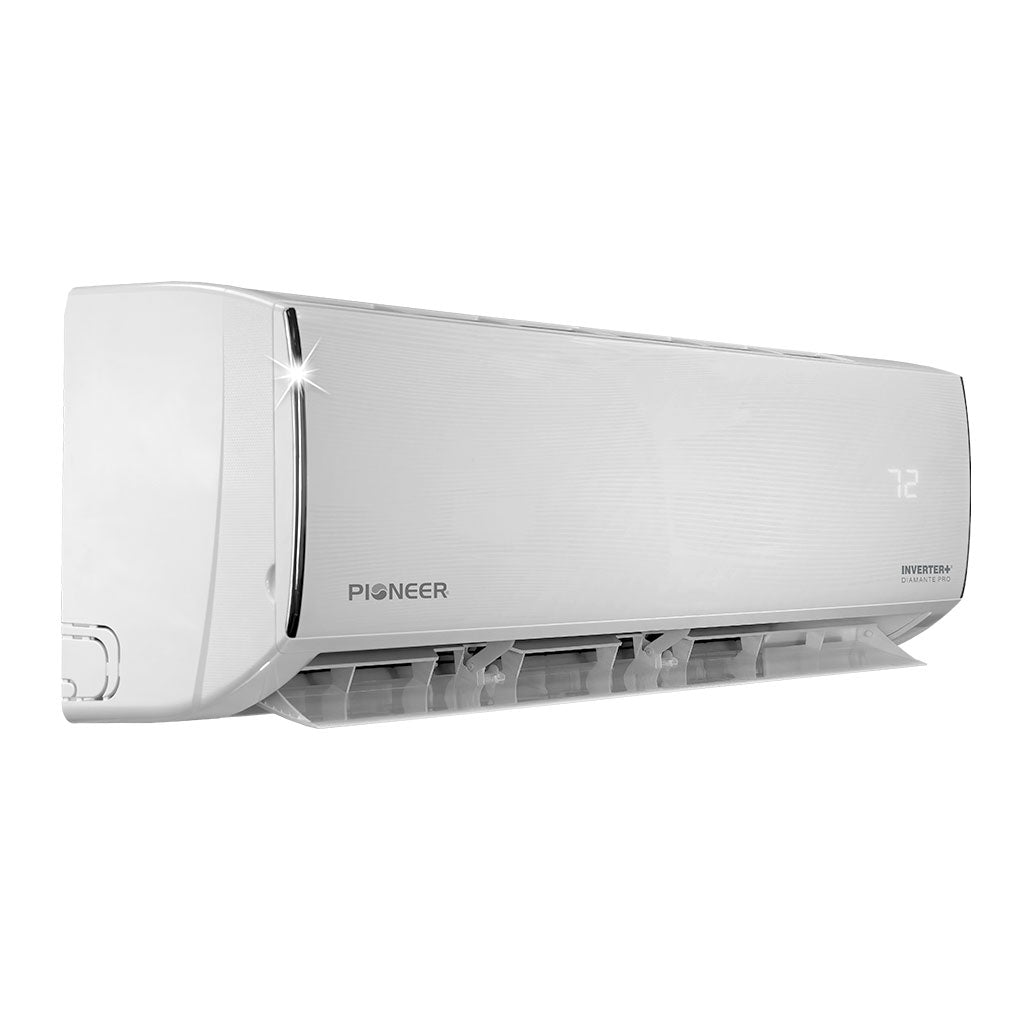

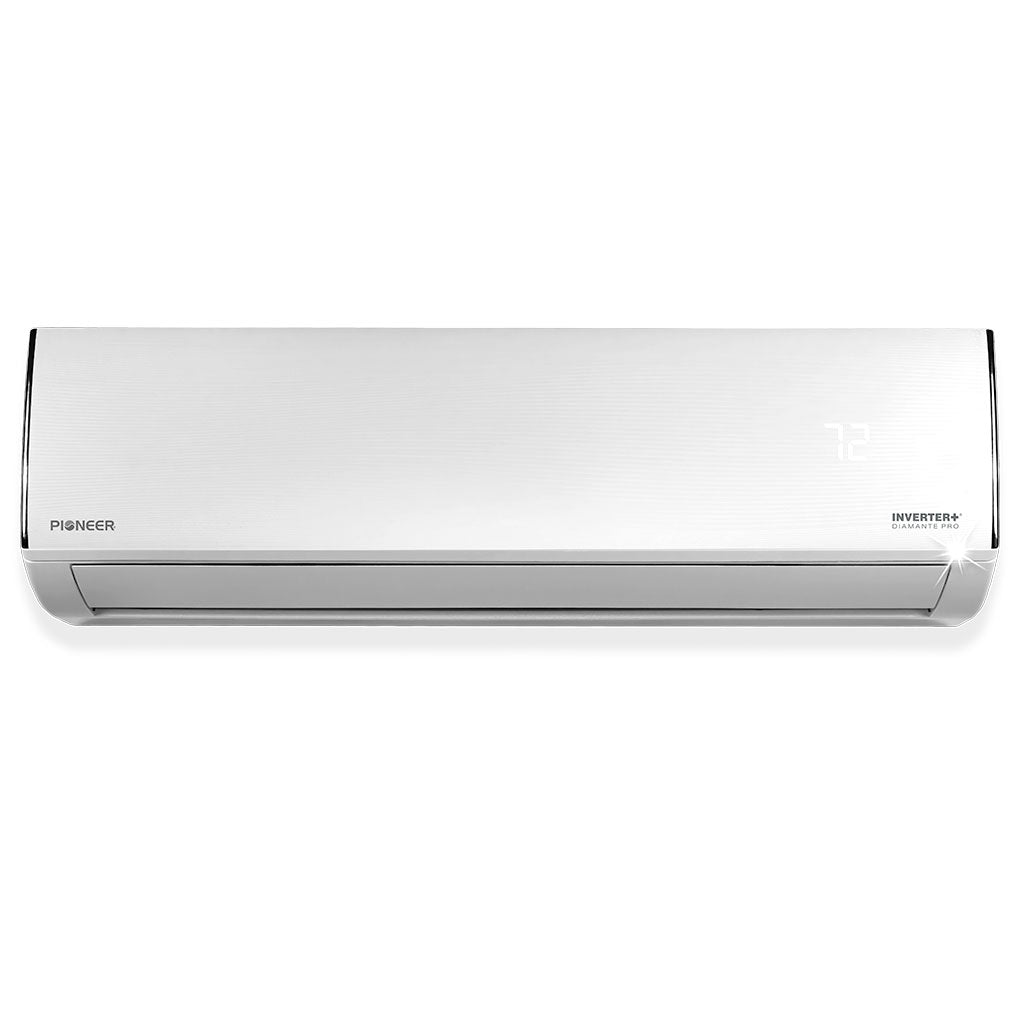

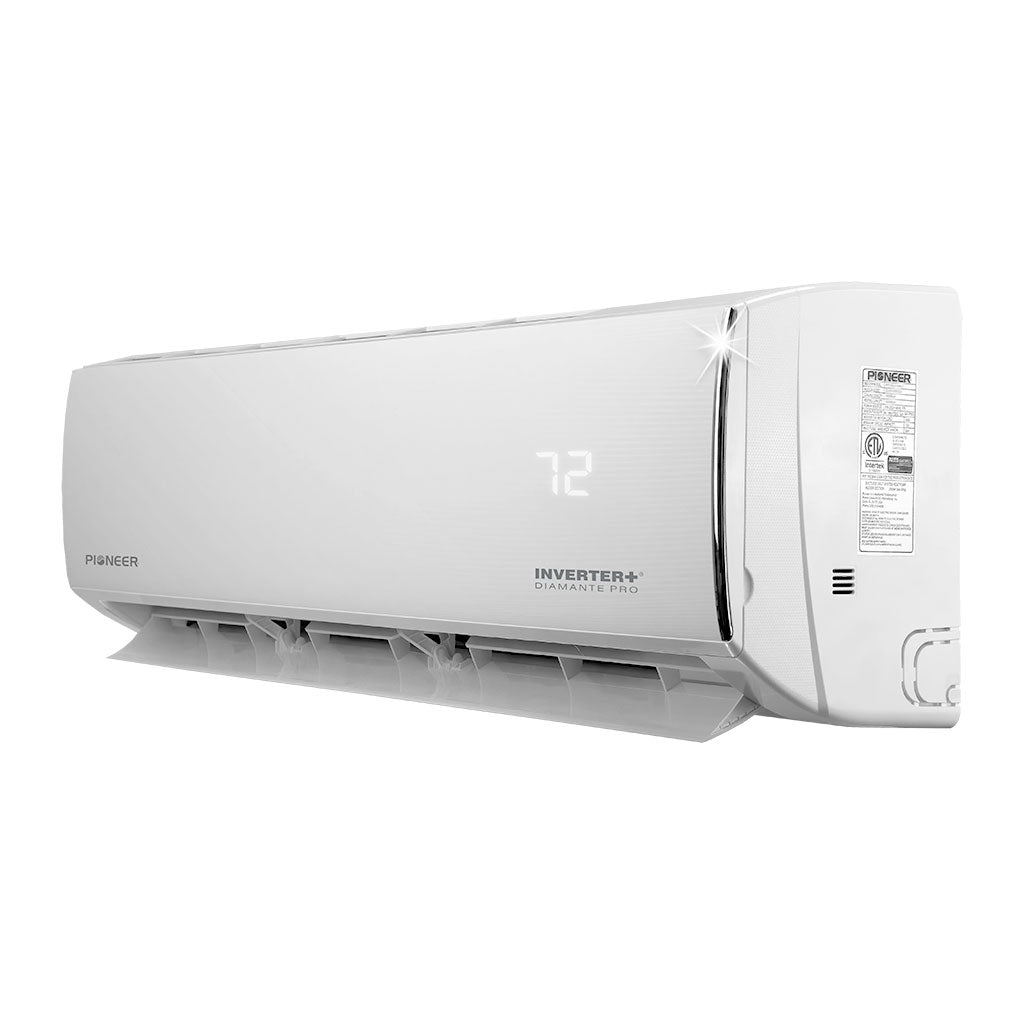

    Indoor Unit Data

    • Part Number: WT009ALFI19HLD
    • Air Flow (Hi/Med/Lo): 353 / 288 / 250 CFM
    • Sound Level (Hi/Med/Lo): 38 / 35 / 32 dB(A)
    • Net Dimensions (WDH): 32 x 8-1/8 x 11-1/2 Inches
    • Carton Dimensions (WDH): 34-7/8 x 11 x 14-1/2 Inches
    • Net / Gross Weight: 19.8 / 24.2 lbs

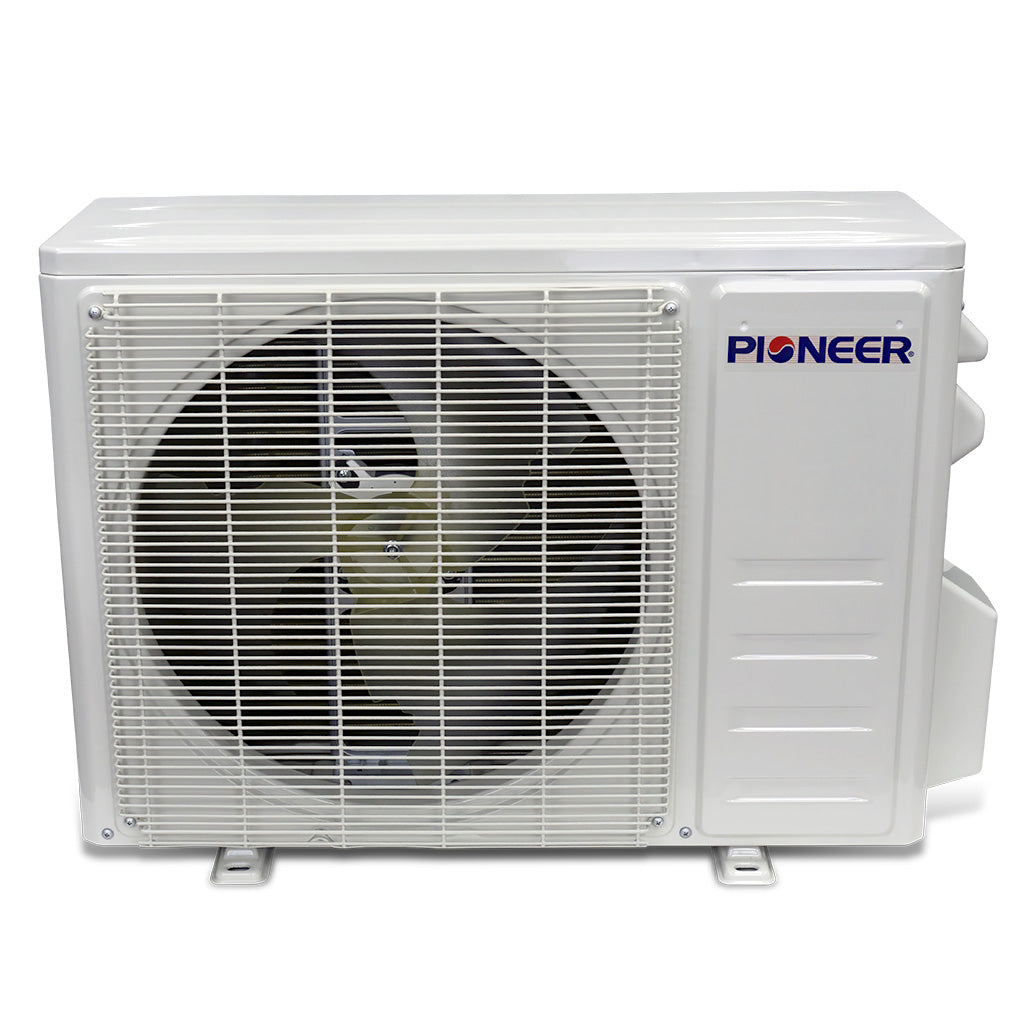

    Outdoor Unit Data

    • Part Number: YN009ALFI19RPD
    • Breaker Needed: 20A (single-pole)
    • Sound Level: 50 dB(A)
    • Net Dimensions (WDH): 28-5/8 x 12 x 21-5/8 Inches
    • Carton Dimensions (WDH): 33-1/2 x 14-1/8 x 24 Inches
    • Net / Gross Weight: 60.6 / 69.5 lbs
